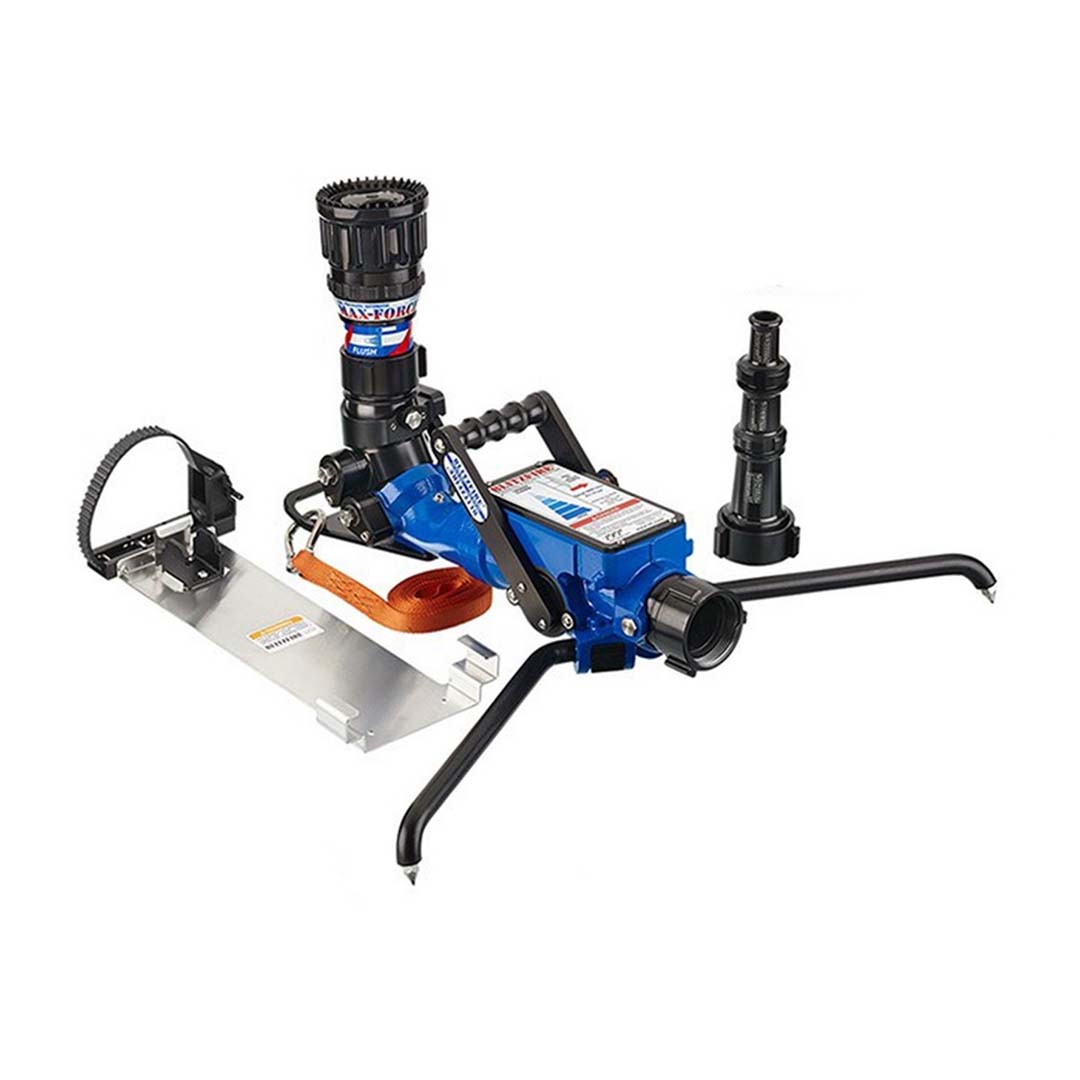

TFT Blitzfire™ 2.5" Monitor Package (High Elevation)

SKU: XXC-42-HEAT1

The Blitzfire Portable Monitor Packages are manufactured from lightweight high strength aluminum alloy that has been hard coat anodized and powder coated for ultimate corrosion protection.

High Elevation: Bracket & Stack Tips
Description
The unique stainless steel slide valve design provides total nozzle-man flow control and integrates TFT’s patented safety shut off to prevent unintended movement. Offers an exclusive 10 degree low attack angle, 20 degree side to side horizontal movement, and a rear pivoting inlet for added fire-ground stability.
Features

  • Flow range up to 500 gpm (2000 l/min)
  • Low friction inlet and outlet pivots
  • Outlet has built-in stream shaper
  • Elevation is manually adjustable between 10 and 86 degrees above horizontal
  • Horizontal rotation is manually adjustable 20 degrees either side of center
  • SAFETY SHUT-OFF VALVE will shut off flow if monitor slides or lifts
  • Six detent flow positions with a patented turbulence free slide valve for operator flow control
  • When the legs are folded, the carbide tips point up for carrying safety
  • Heavy-duty carbide tipped legs are easily folded out to a wide deployed stance
  • Stowed in storage bracket overall size is 29.5"L x 8.1"W x 8.5"H (74.9 x 20.6 x 21.6 cm)
  • Standard inlet is 2.5" NH (65mm) rocker lug swivel coupling
  • Standard outlet is 2.5" NH (65mm) rigid male threads

Technical Specs

  • Finish - Dark Blue
  • Horizontal Control - N/A
  • Horizontal Movement Degrees - 20 left and right of center
  • Inlet - 2.5" (65mm)
  • Max Flow - 500 gpm (2,000 l/min)
  • Operation Energy Source - Manual
  • Outlet - 2.5" (65mm)
  • Safety Shutoff - Yes
  • Valve Design - Aluminum Slide Valve
  • Vertical Control - N/A
  • Vertical Movement Degrees - 10 to 86 above horizontal
