Innotex Energy™ RDG40 Bunker Gear

OUTER SHELL: PIONEER™ – GOLD COLOR

Plain weave, water-repellent finish
CONTENT
Kevlar®/ Nomex® blend spun yarn.

MOISTURE BARRIER: GORE® RT 7100 3D

SUBSTRATE
Nomex® non-woven spunlace
FILM
Bi-component ePTFE membrane

THERMAL BARRIER: DEFENDER® M NP - BRASS COLOR

FACE CLOTH
Lenzing FR®/ Para-aramid / Nylon blend spun yarn, plain weave.
BATTING
One layer needlepunch, non-woven.

COAT

• 32” style coat
• NFPA style Scotchlite® 3” Segmented (triple trim)
• Zip-in liner attachment
• Retractable Action Back™

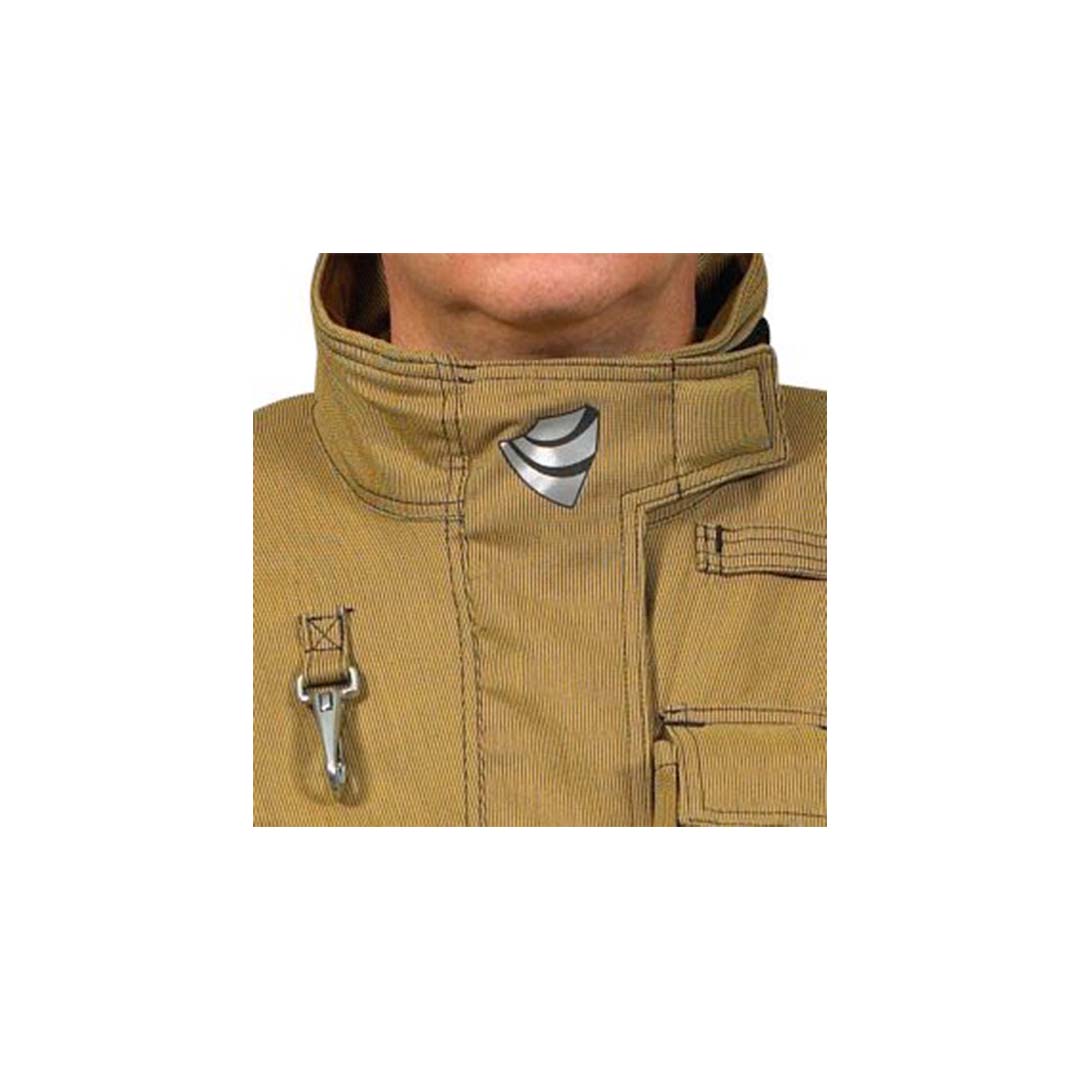

• Variable height collar - All-around protection with 4" back transitioning to 3" front
• Vislon® Zipper Closure

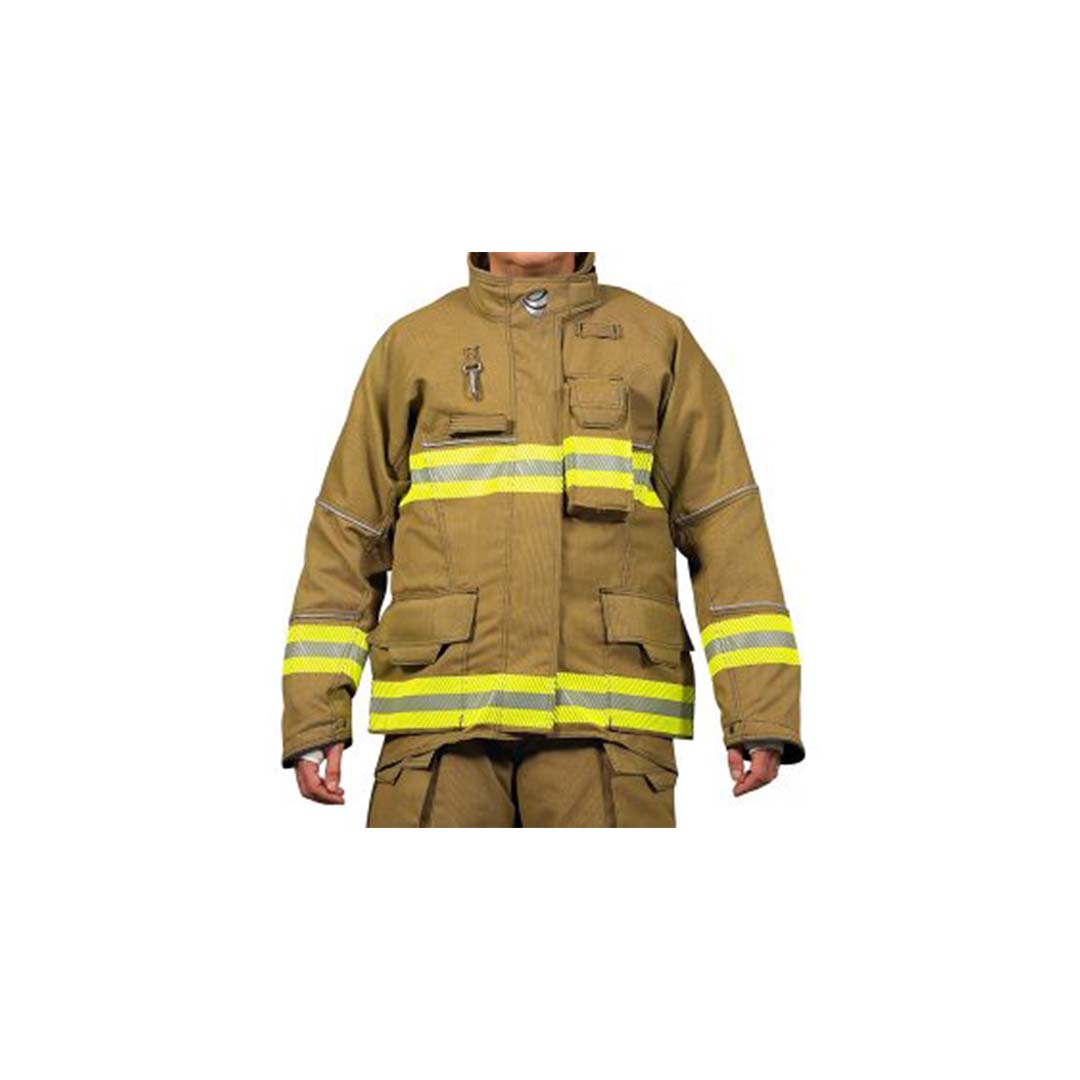

• Flashlight Holder - Right Chest

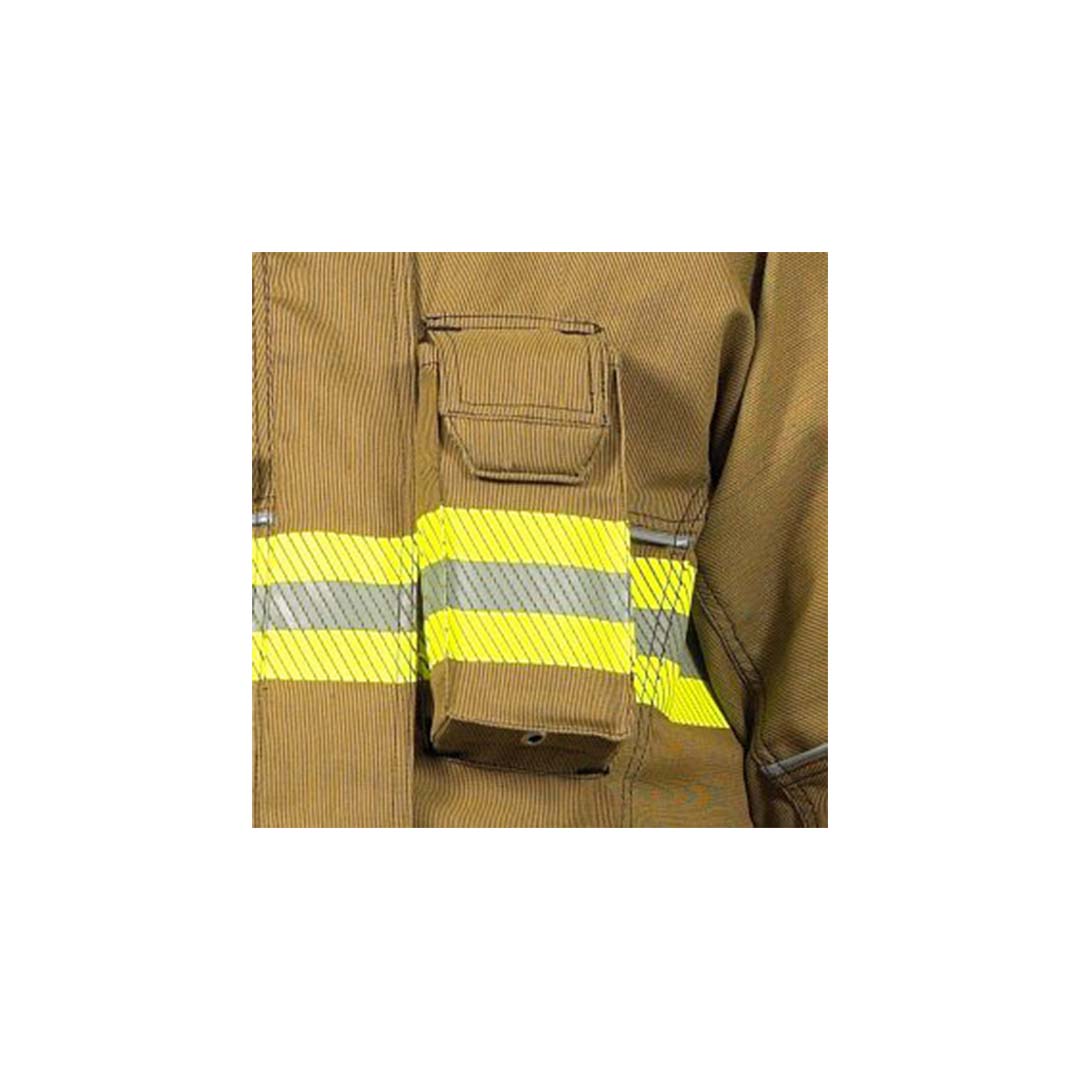

• Radio Pocket 8" x 4" x 2" and mic loop - Left Chest

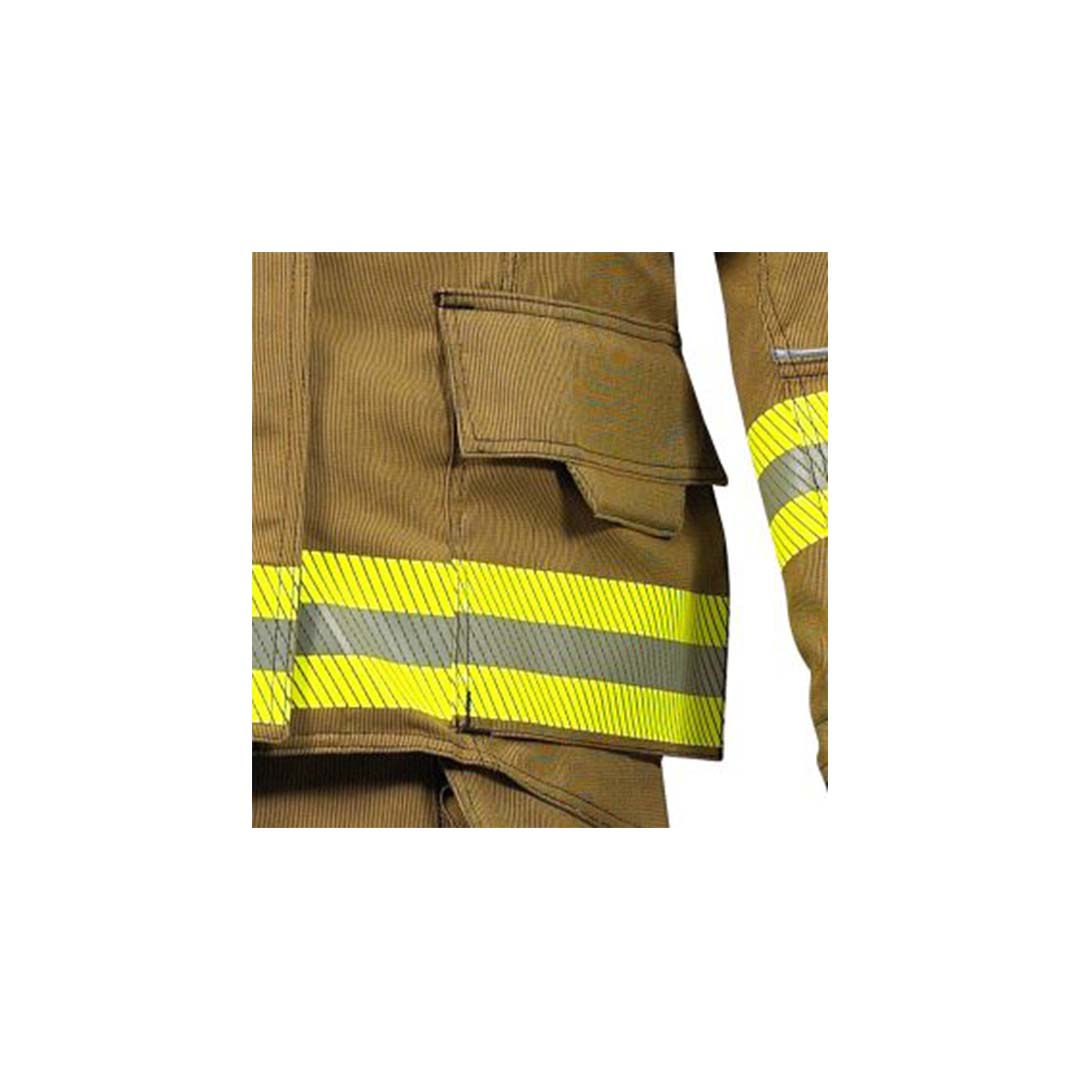

• 8" x 9" Semi Bellows Pockets on Coat - Include grabbers for easier grip

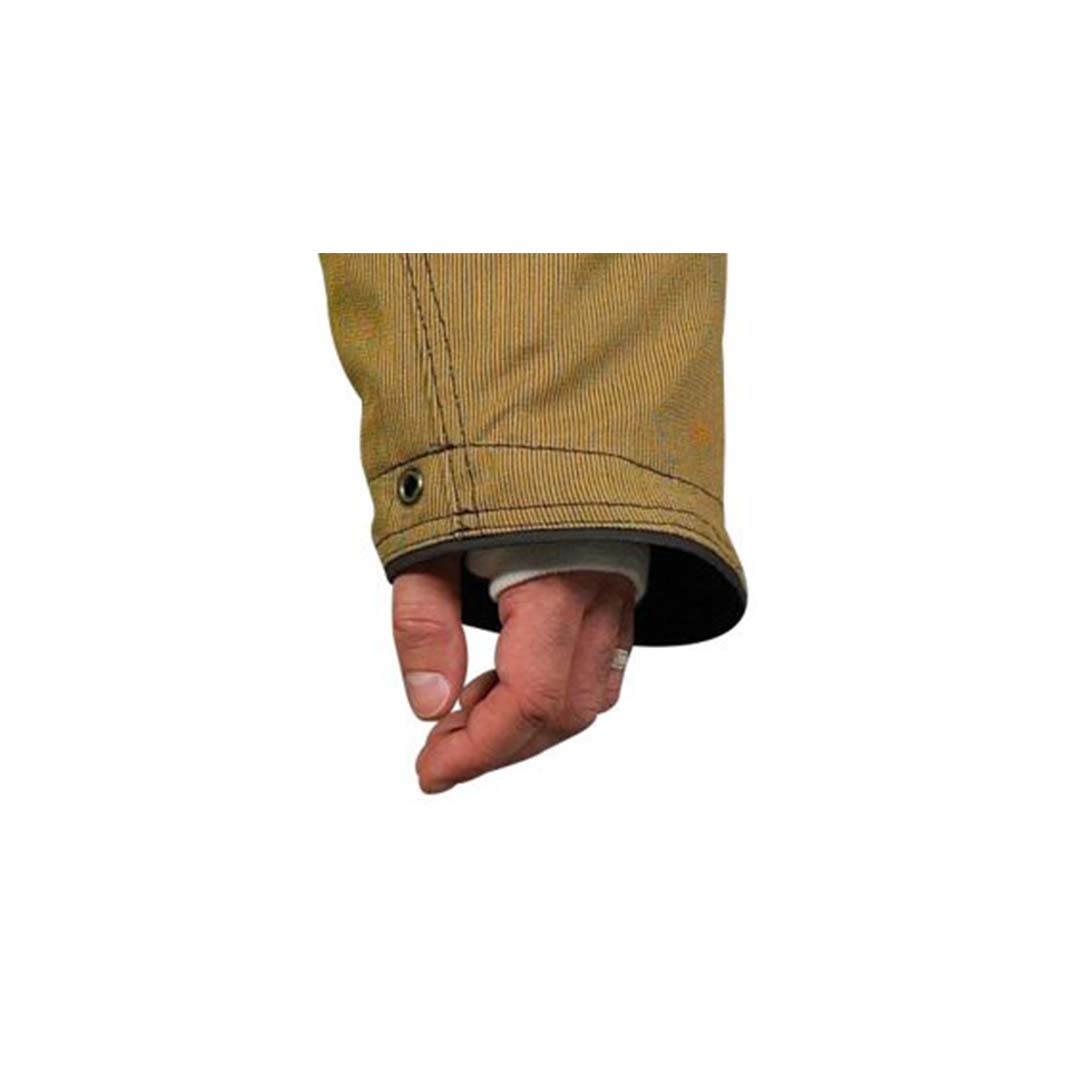

• White Nomex wristlet with thumb hole

• Regular waist pant
• Waist Adjustment - Kevlar® belt with belt loops
• Suspenders - H-style suspenders with neoprene padding

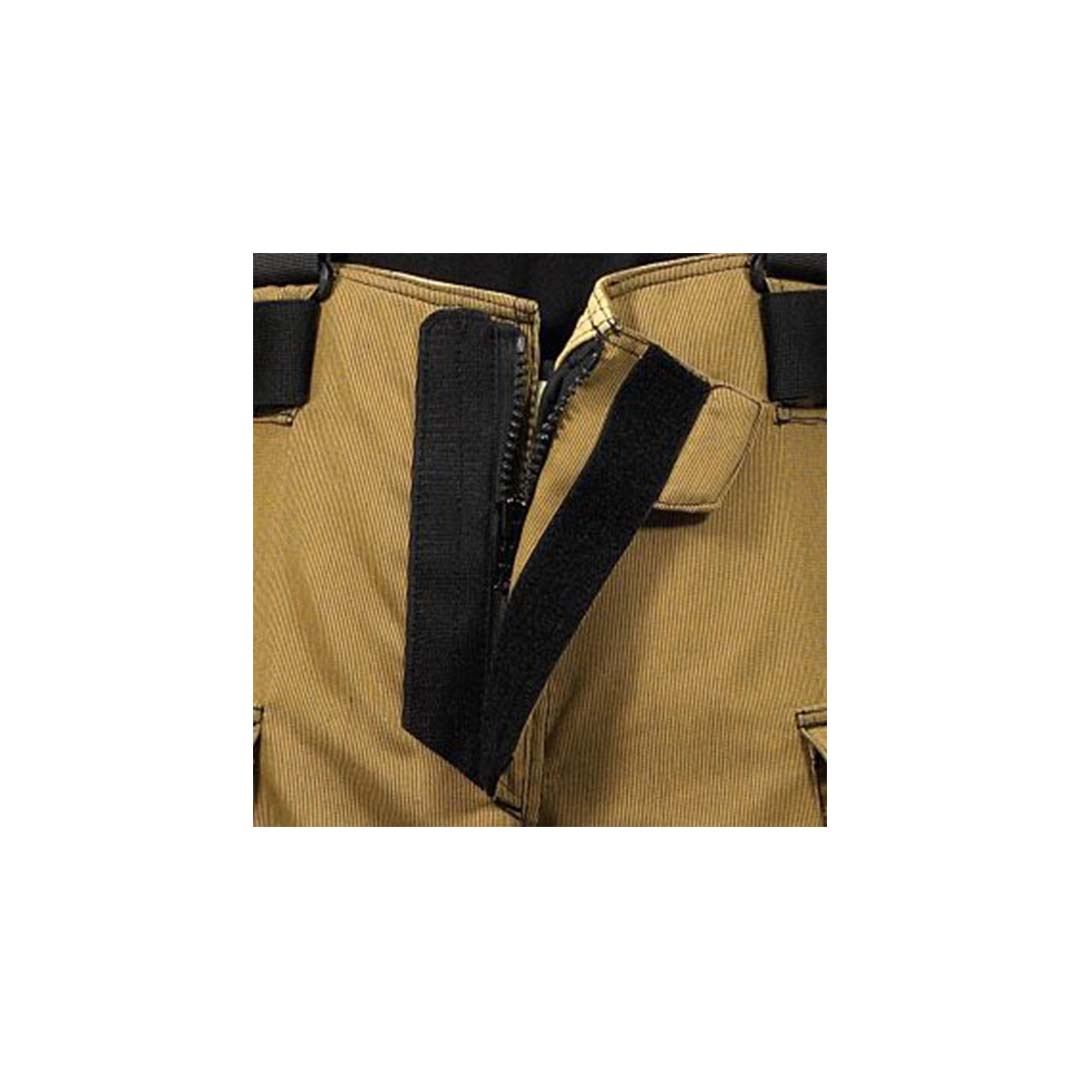

• Vislon® Zipper Closure

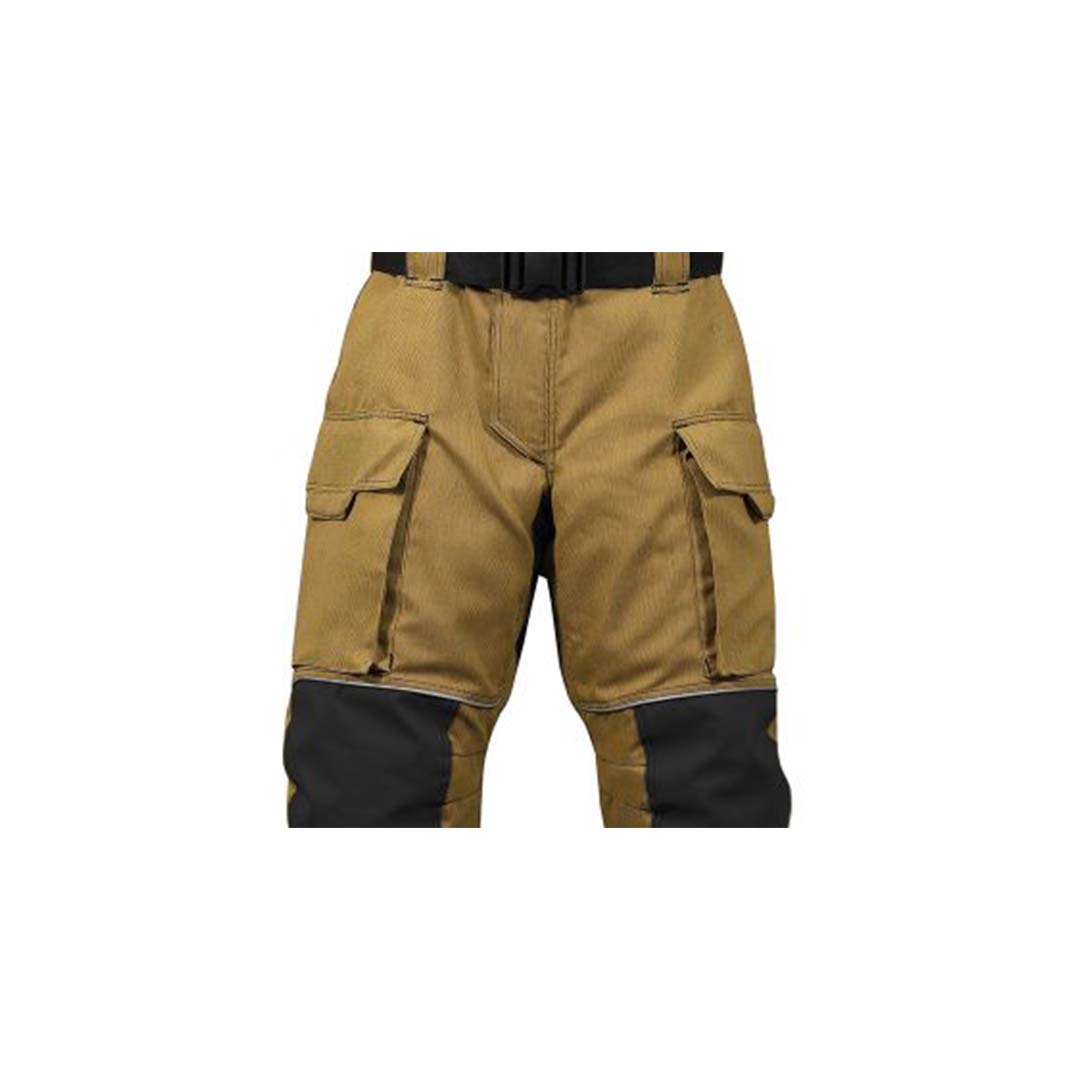

• Semi Bellows 10" x 10" Pockets on Pants - Inversed pockets (bellow at front) - Include grabbers for easier grip

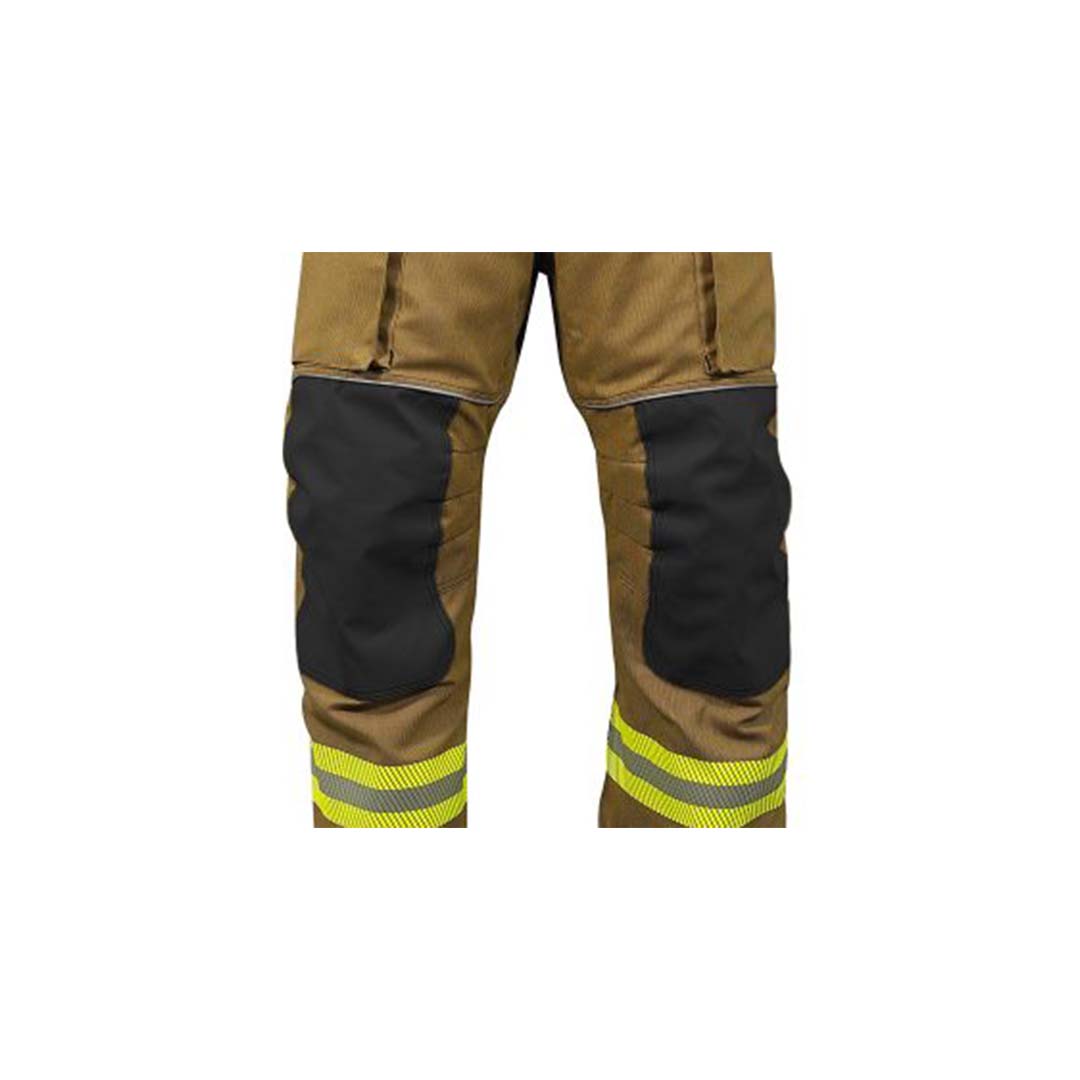

• Enhanced Mobility Knees™
• Knees reinforced with black Polymer Coated Aramid
• Includes extra padding in the knee (14 oz. Nomex® felt)
• Preformed multi-panel legs for improved range of motion

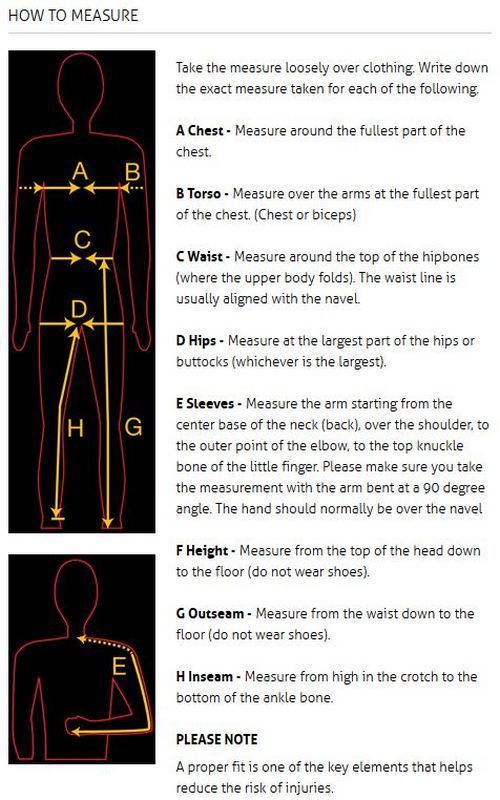

Take the measure loosely over clothing. Write down the exact measure taken for each of the following:

A: Chest
Measure around the fullest part of the chest.

B: Torso
Measure over the arms at the fullest part of the chest (Chest or biceps).

C: Waist
Measure around the top of the hipbones (where the upper body folds). The waist line is usually aligned with the navel.

D: Hips
Measure at the largest part of the hops or buttocks (whichever is the largest).

E: Sleeves
Measure the arm starting from the centre base of the neck (back), over the shoulder, to the outer point of the elbow, to the top knuckle bone of the little finger. Please make sure you take the measurement with the arm bent at a 90 degree angle. The hand should normally be over the navel.

F: Height
Measure from the top of the head down to the floor (do not wear shoes).

G: Outseam
Measure from the waist down to the floor (do not wear shoes).

H: Inseam
Measure from high in the crotch to the bottom of the ankle bone.

PLEASE NOTE:
A proper fit is one of the key elements that helps reduce the risk of injuries.
