Task Force Tips Logo

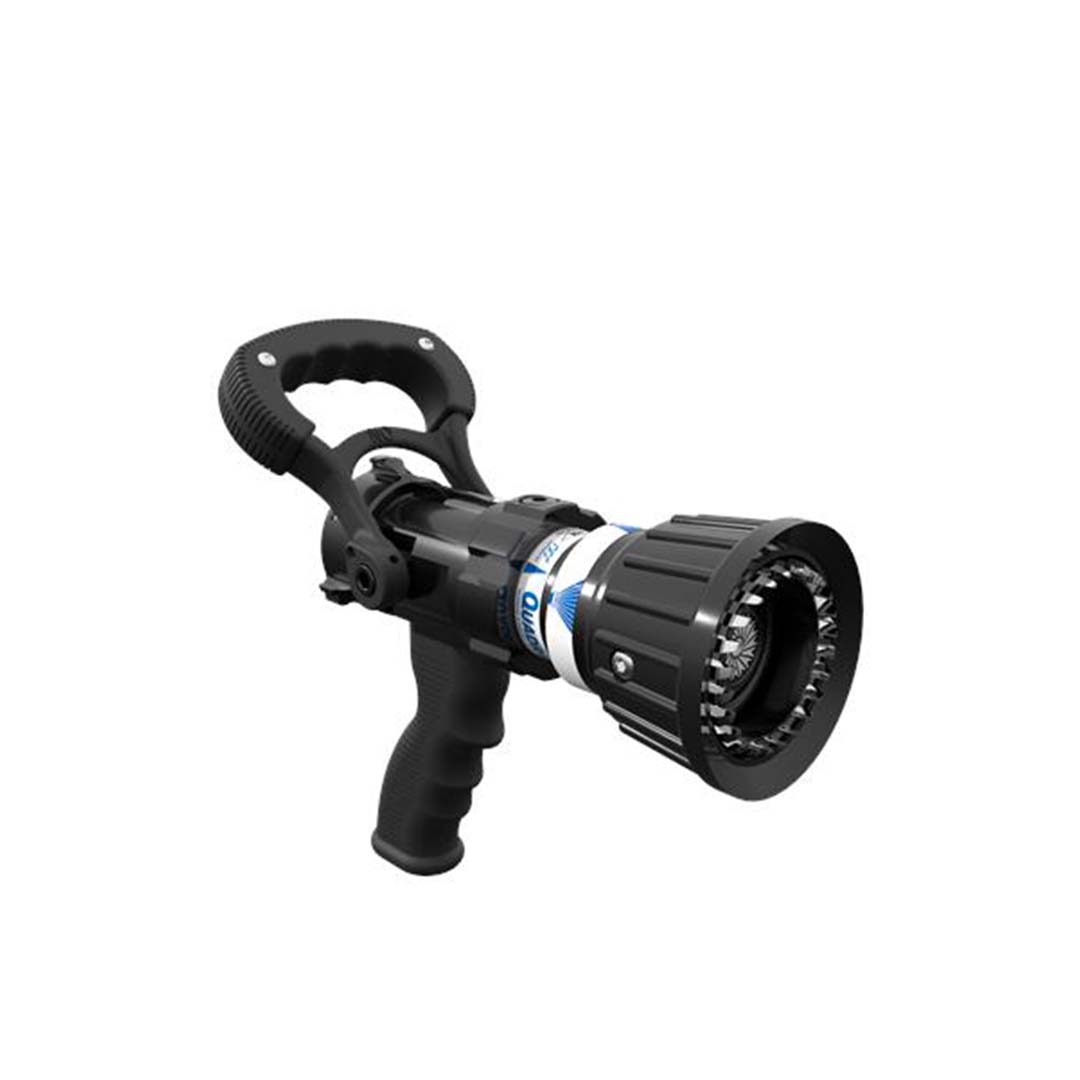

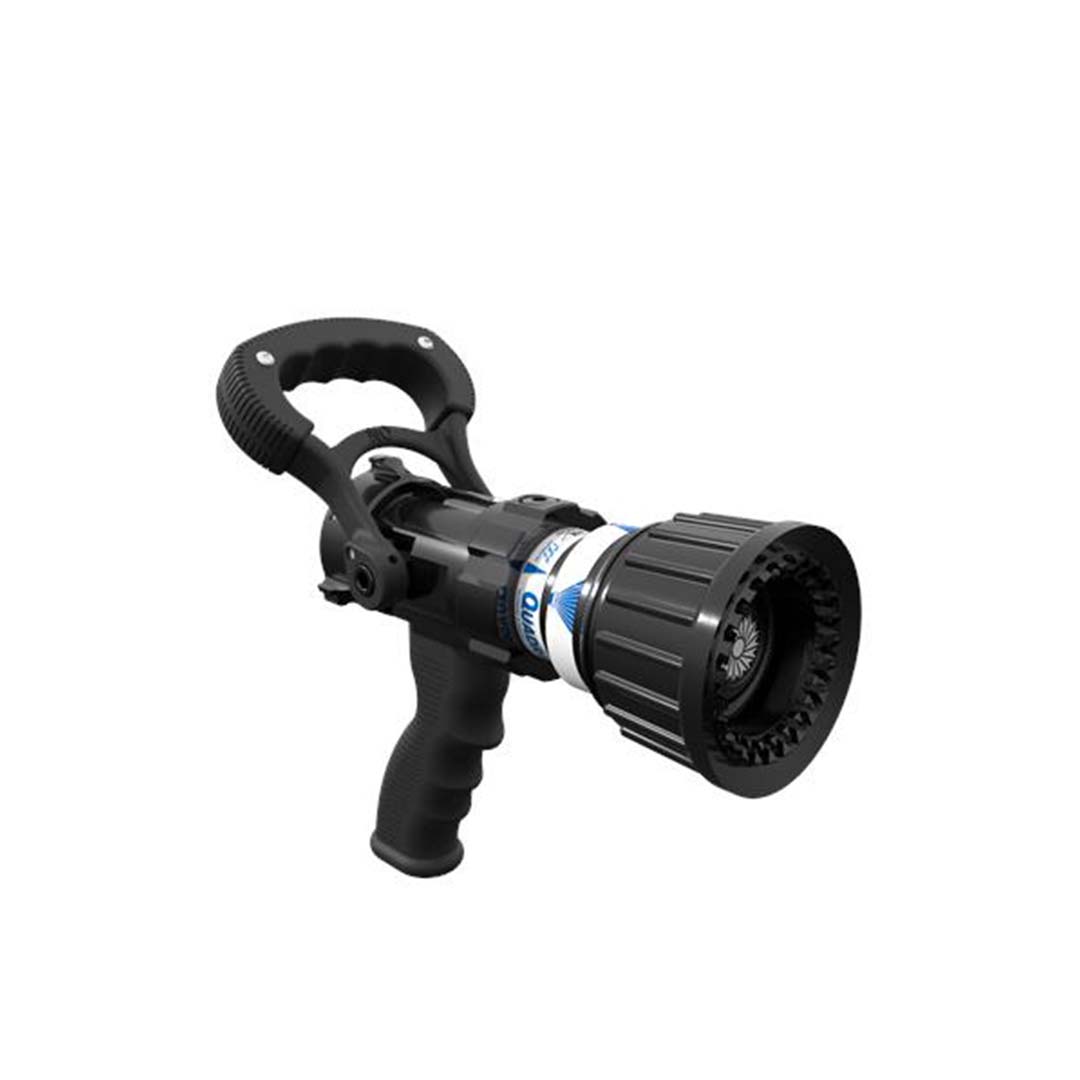

TFT QuadraFog® Selectable Flow Fire Nozzle

SKU: FQS125LPS-IF

Selectable gallonage nozzle with four flow settings of 30, 60, 95, and 125 gpm @ 75/100 psi. All lightweight materials, hard coat anodized aluminum. Flush without shutting down. Quick-change rear valve seat and stainless steel shut-off ball. Pistol grip is mounted below the valve. Rocker lug 1.5" NH swivel is standard.

Description

An excellent selectable gallonage nozzle for any 1” (25mm) or 1.5” (38mm) hose line. The QUADRAFOG is an economical and lightweight combination nozzle suitable for use with low-expansion or multi-expansion foam attachments. 1” versions range are 5-40 gpm (20-150 l/min) or 5-60gpm (20-230 l/min). The 1.5” version has a range of 30-125 gpm (110-470 l/min), and is available in high(100 psi) or low-pressure(75 psi) versions with either a molded rubber bumper or stainless steel spinning fog teeth.

Features

  • Pistol Grip
  • Stainless Steel Valve Design
  • Flow Rate 30/60/95/125gpm (110/230/360/470 l/min)
  • Rocker Inlet Coupling Style
  • 1.5" (38 mm)
  • Non-Full Time Swivel
  • Selectable
  • 75 psi / 100 psi Operating Pressure
  • Certification NFPA/FM
