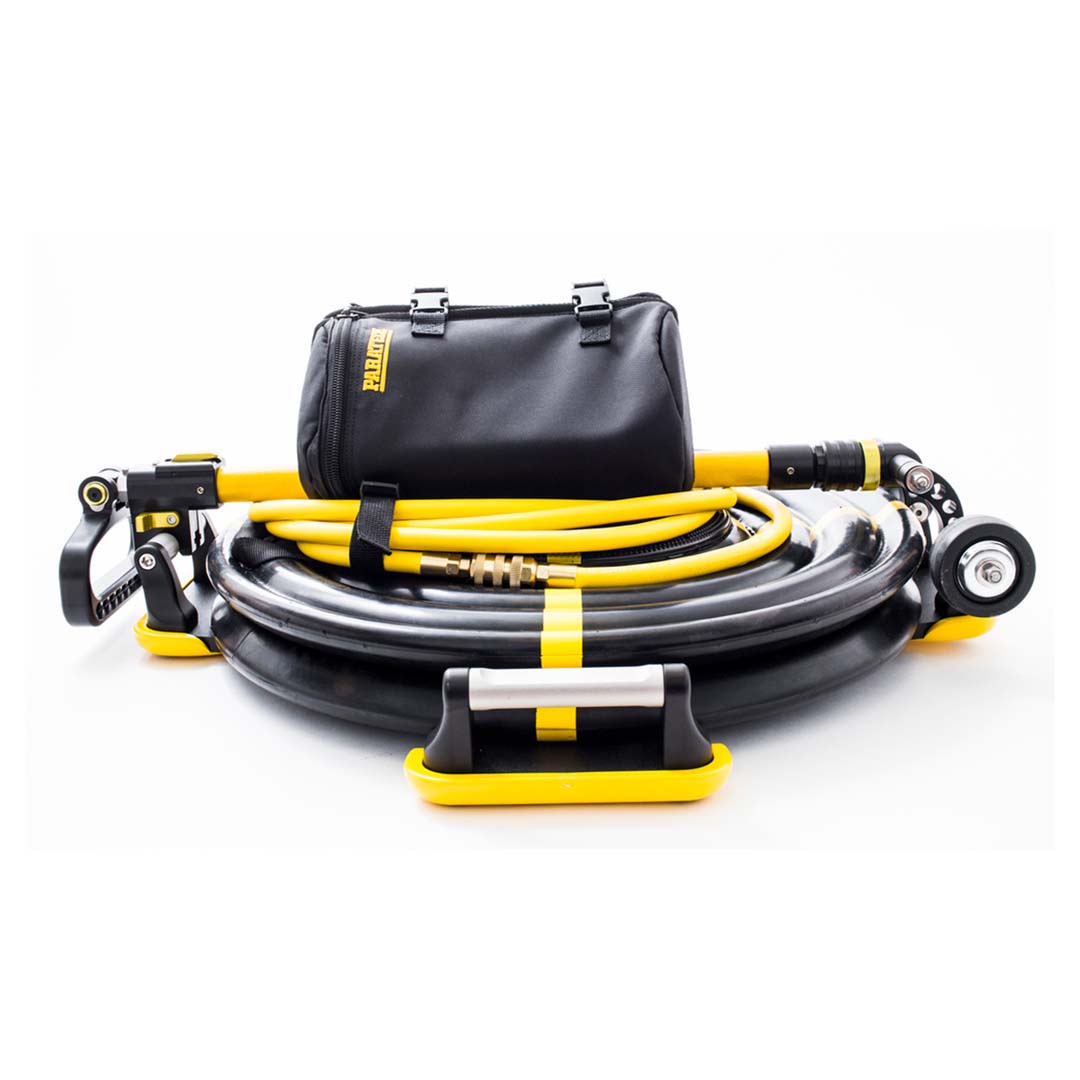

Paratech Remote Placement MultiForce® Bag Kit

SKU: 22-88D025K

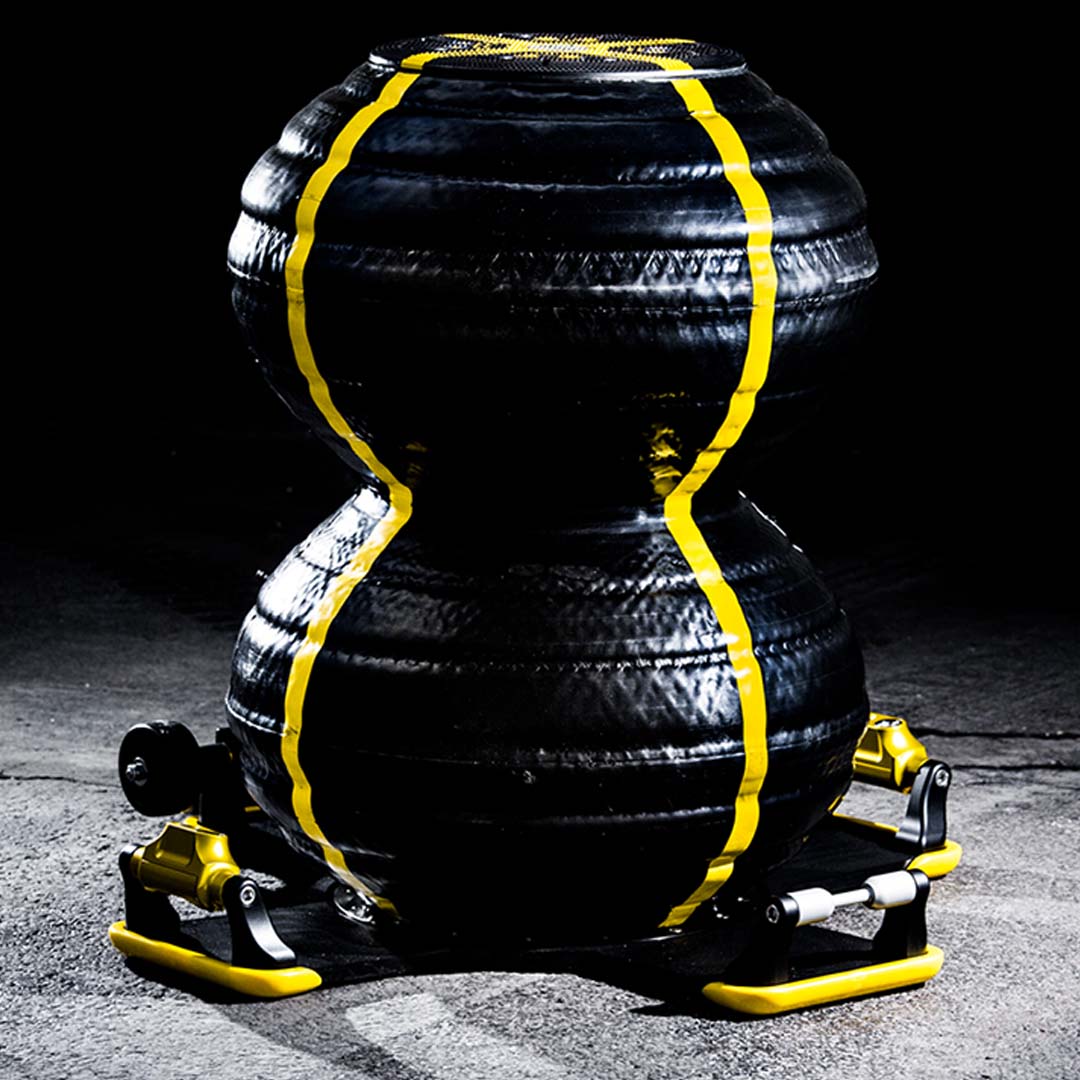

The MultiForce® Air Lifting Bag takes lifting to a whole new level. Integrating the latest technology with a unique understanding of lifting, Paratech has designed the MultiForce® Air Lifting Bag to exceed expectations.

Description

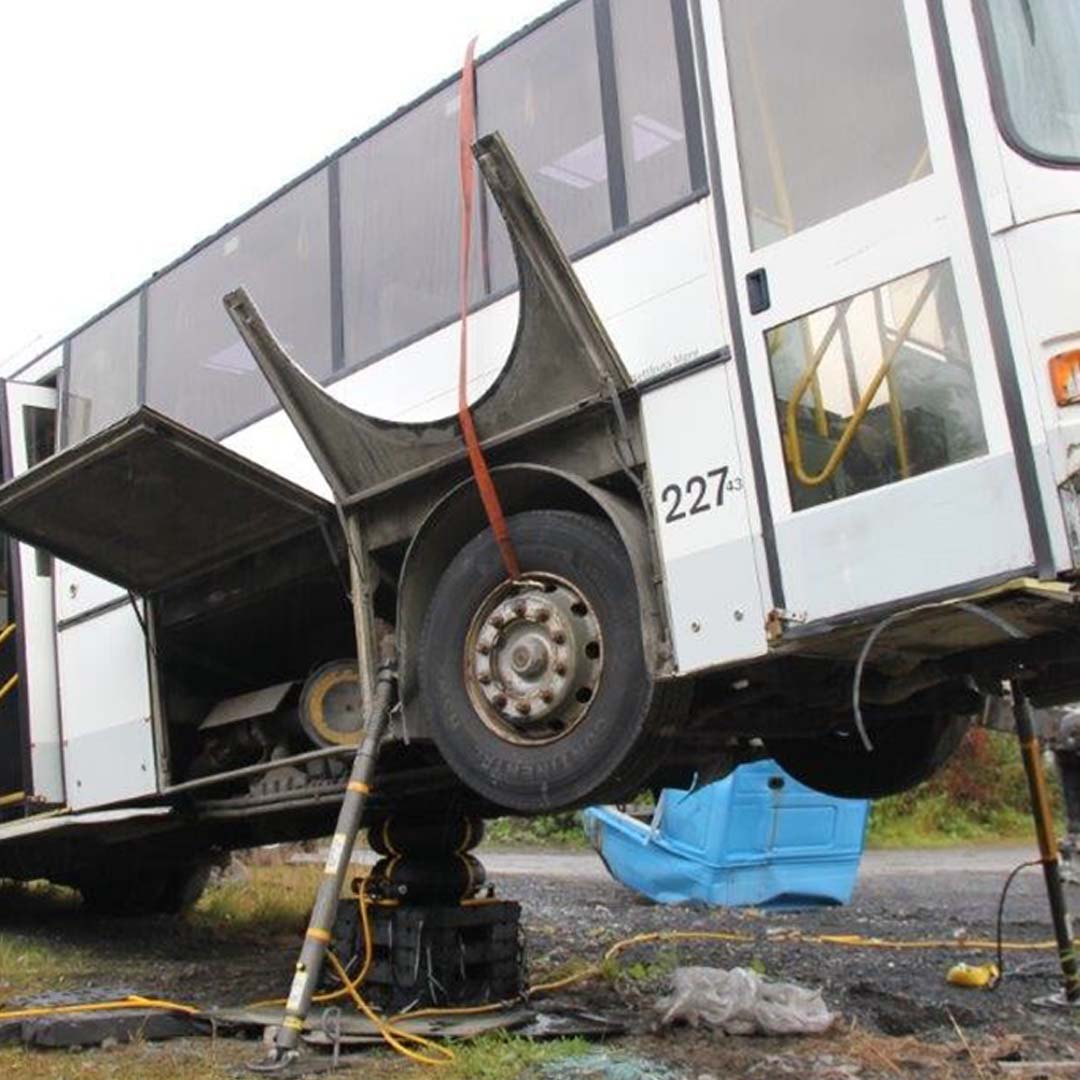

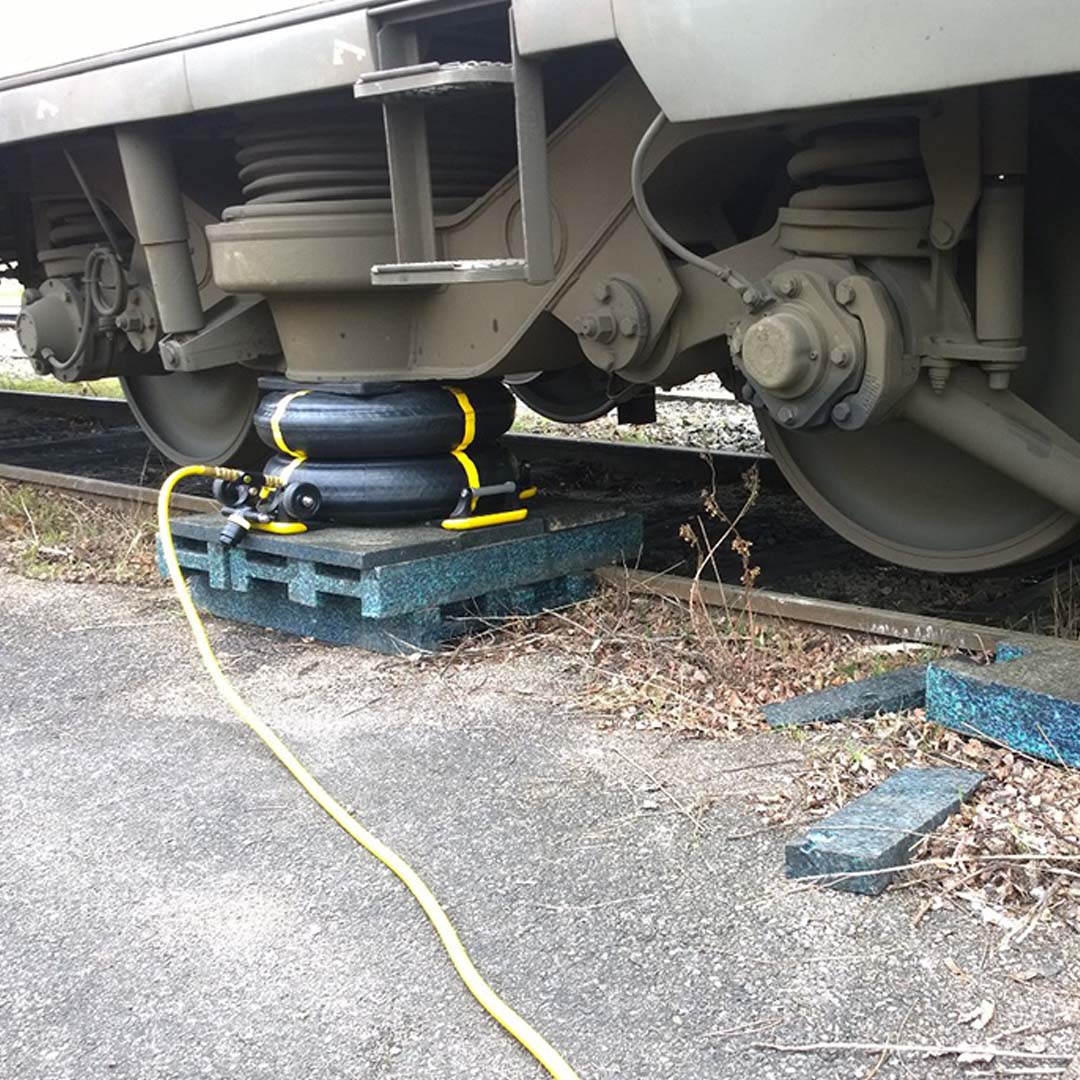

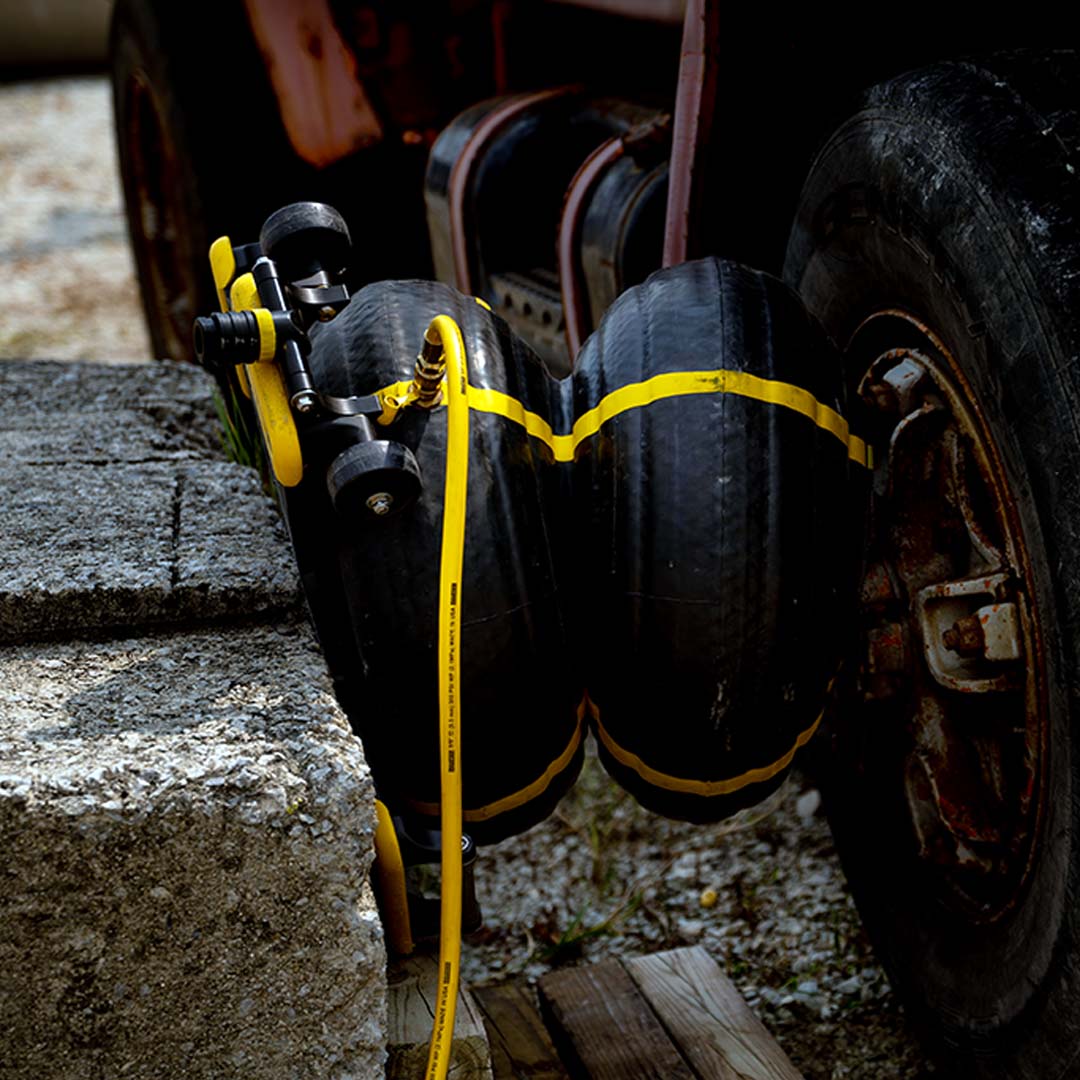

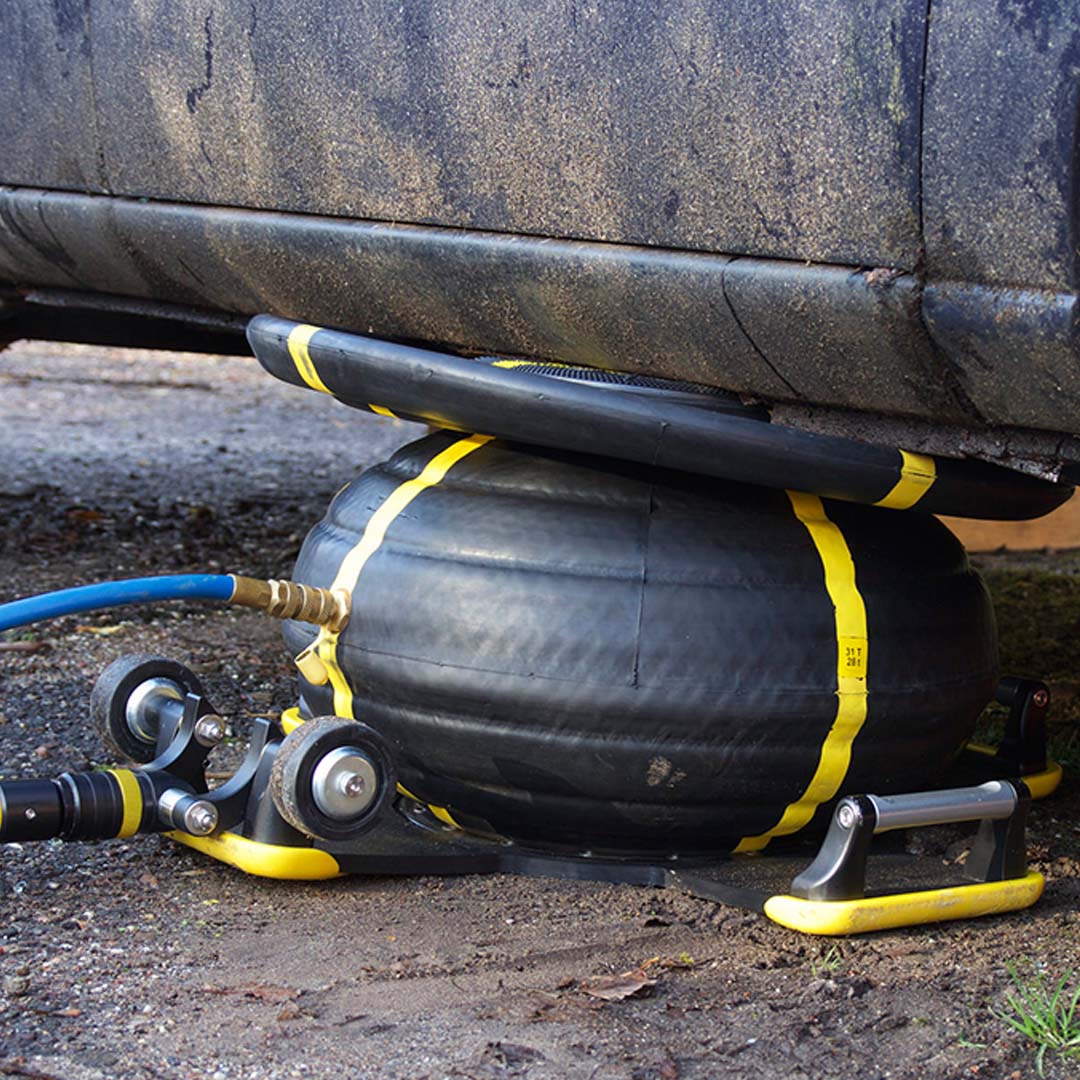

Ease of use and speed of deployment make the MultiForce® Air Lifting Bag an obvious choice whether the goal is saving lives or lifting locomotives. Paratech’s patent-pending design ensures that the high lift of this system can get into the tightest places possible, while the innovative remote lifting base keeps personnel safely away from the load when positioning the MultiForce® Air Lifting Bag. A dual-stage feature keeps the load steady as the bag inflates so load drift is minimized and safety relief valves are integrated into the bag itself making over-inflation completely impossible. No mechanical coupling between air chambers means a stronger and safer lift. The remote lifting base doubles as a storage device keeping the bag safe and making it extremely easy to store.

Features

  • MULTIFORCE Air Lifting Bags takes lifting to a whole new level
  • Integrates the latest technology with a unique understanding of lifting
  • Ease of use and speed of deployment make the MULTIFORCE Air Lifting Bag an obvious choice whether the goal is saving lives or lifting locomotives
  • Patent pending design ensures that the high lift of this system can get into the tightest places possible

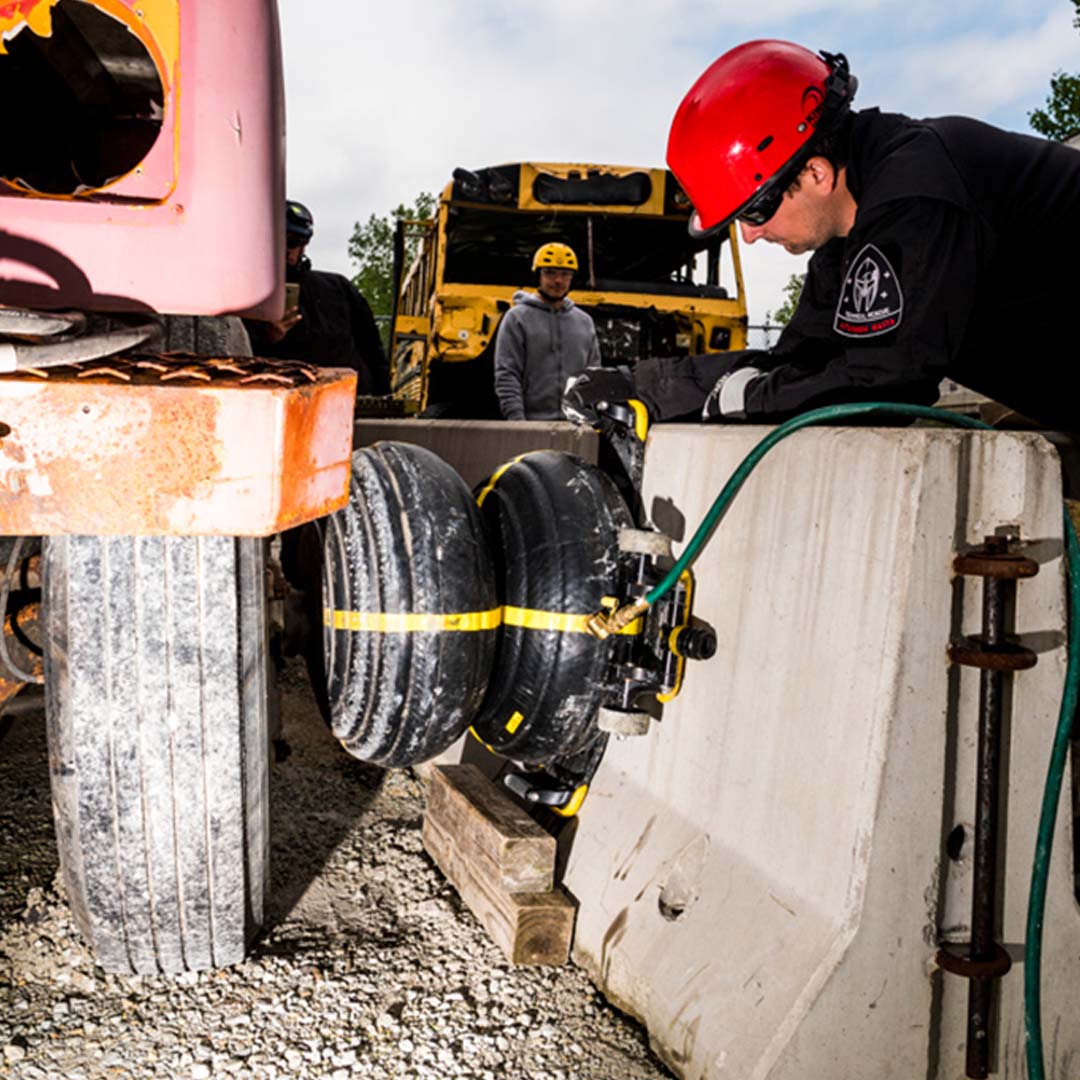

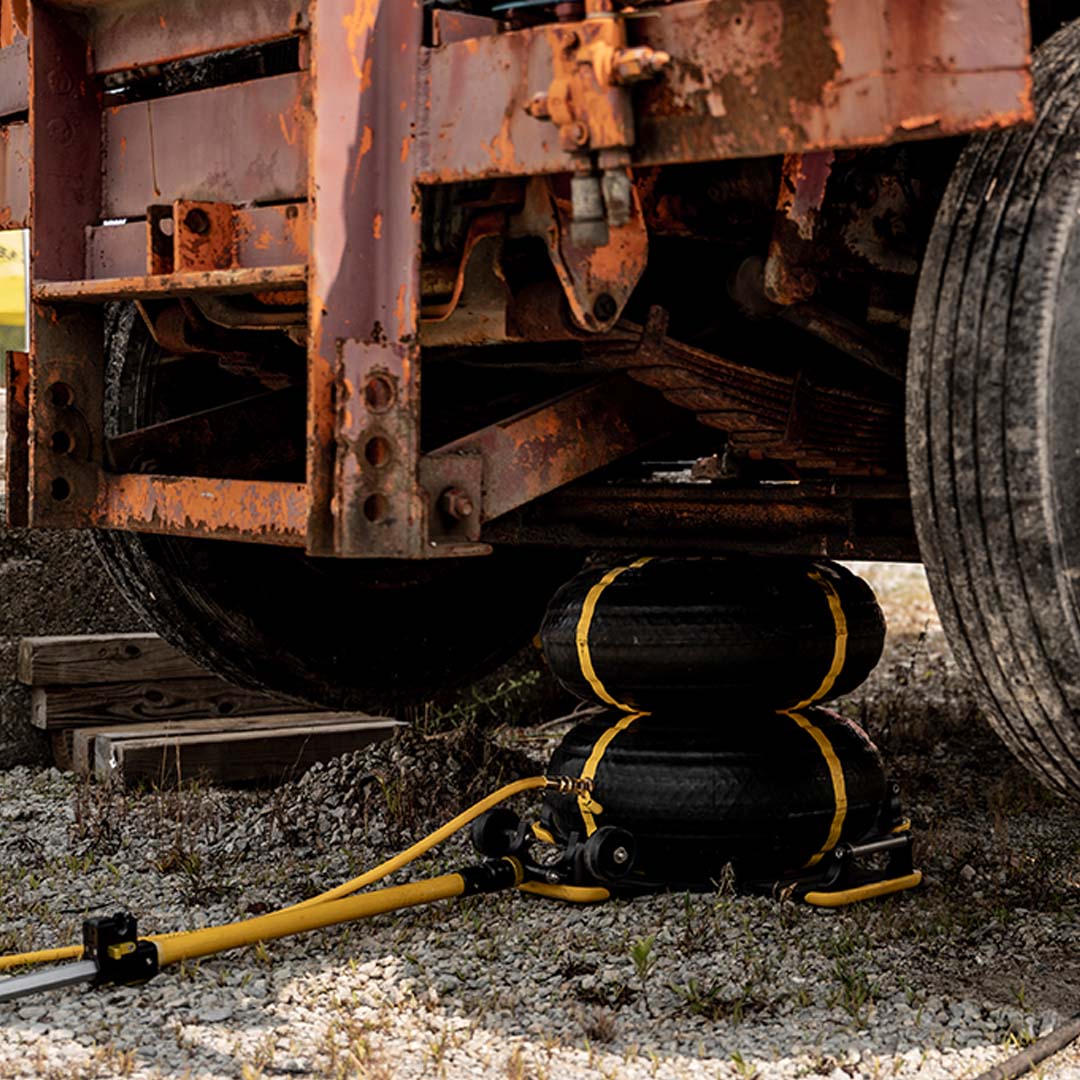

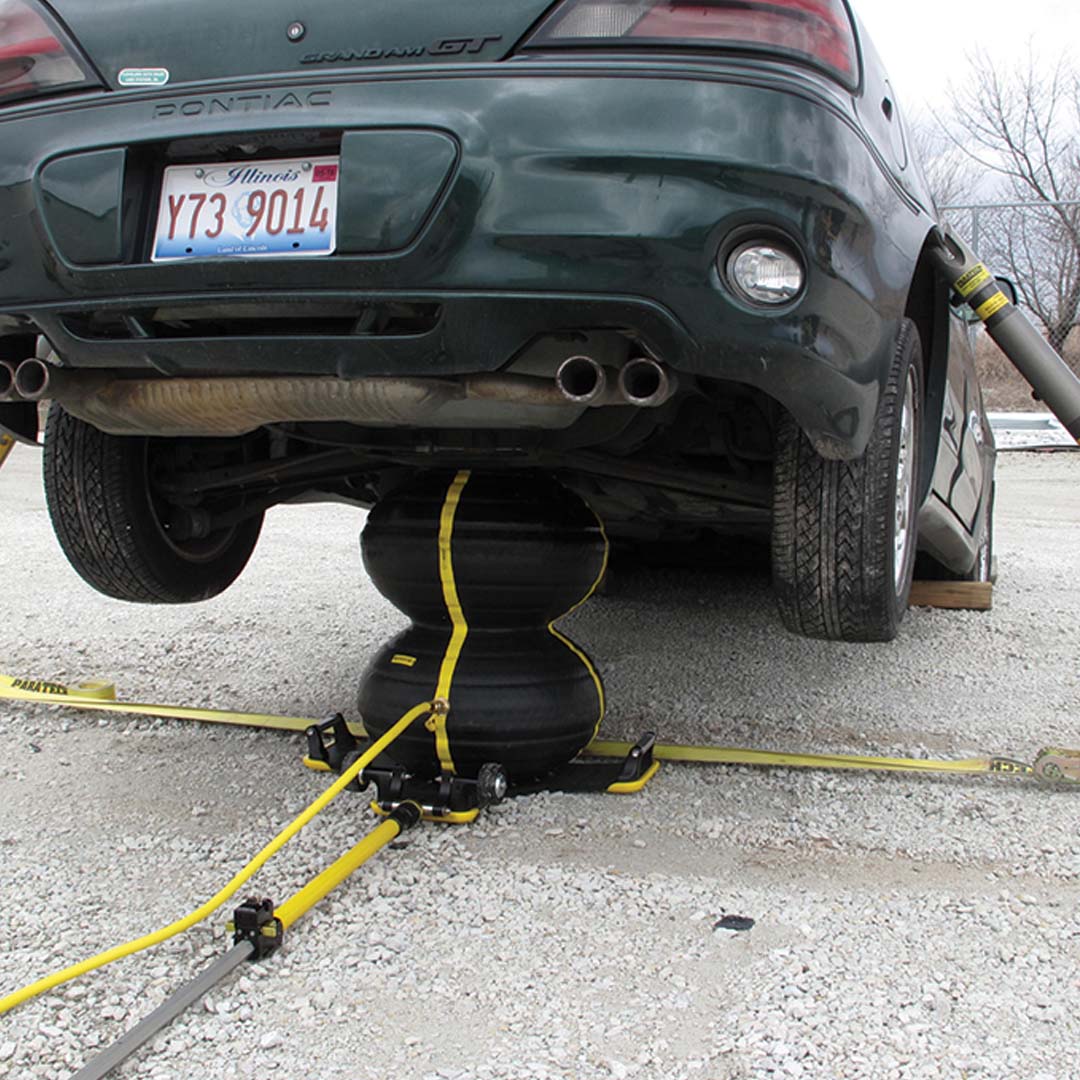

  • Innovative remote lifting base keeps personnel safely away from the load when positioning the MULTIFORCE Air Lifting Bag
  • Dual stage feature keeps the load steady as the bag inflates so load drift is minimized
  • Safety relief valves are integrated into the bag itself making over-inflation completely impossible
  • No mechanical coupling between air chambers means a stronger and safer lift

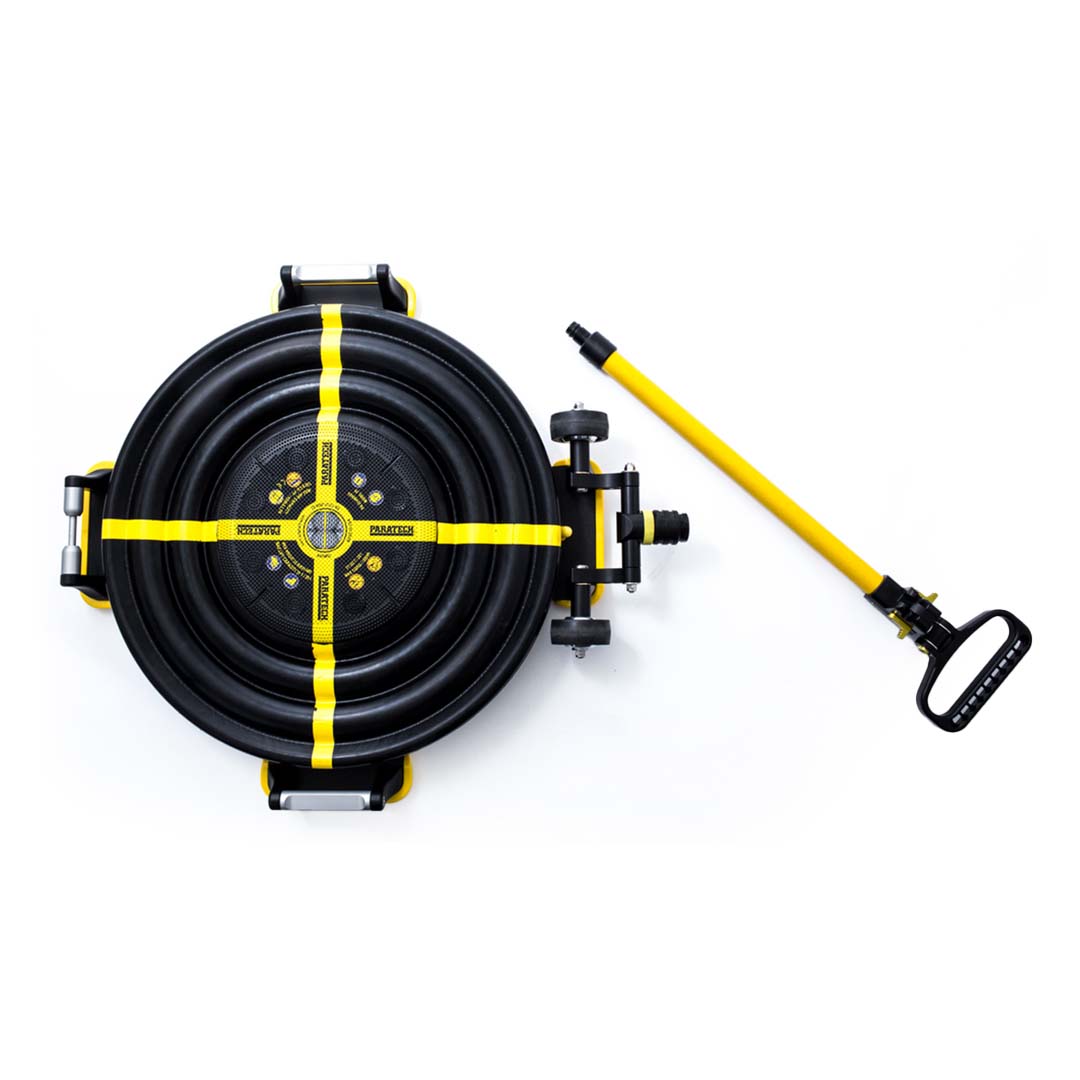

  • Remote lifting base doubles as a storage device keeping the bag safe and extremely easy to store

Technical Specs

  • LIFT HEIGHT= 26 IN / 66 CM
  • LIFT CAPACITY= 31 TONS / 28.1 METRIC TONS
  • INSERTION HEIGHT= 4.5 IN / 11.4 CM
  • WEIGHT=(without placement device) 46.2 LBS / 21 KG
  • WEIGHT=(with placement device) 60.6 LBS / 27.5 KG
  • LENGTH=(without placement device) 23.75 IN / 60.33 CM
  • LENGTH=(with placement device) 30.71 in / 78 CM
  • WIDTH=(without placement device) 23.5 IN / 59.7 CM
  • WIDTH=(with placement device) 27.98 IN / 71.10 CM
  • SAFETY FACTOR=(with placement device) 4 TO 1
  • WORKING PRESSURE= 150 PSI / 10.3 BAR
