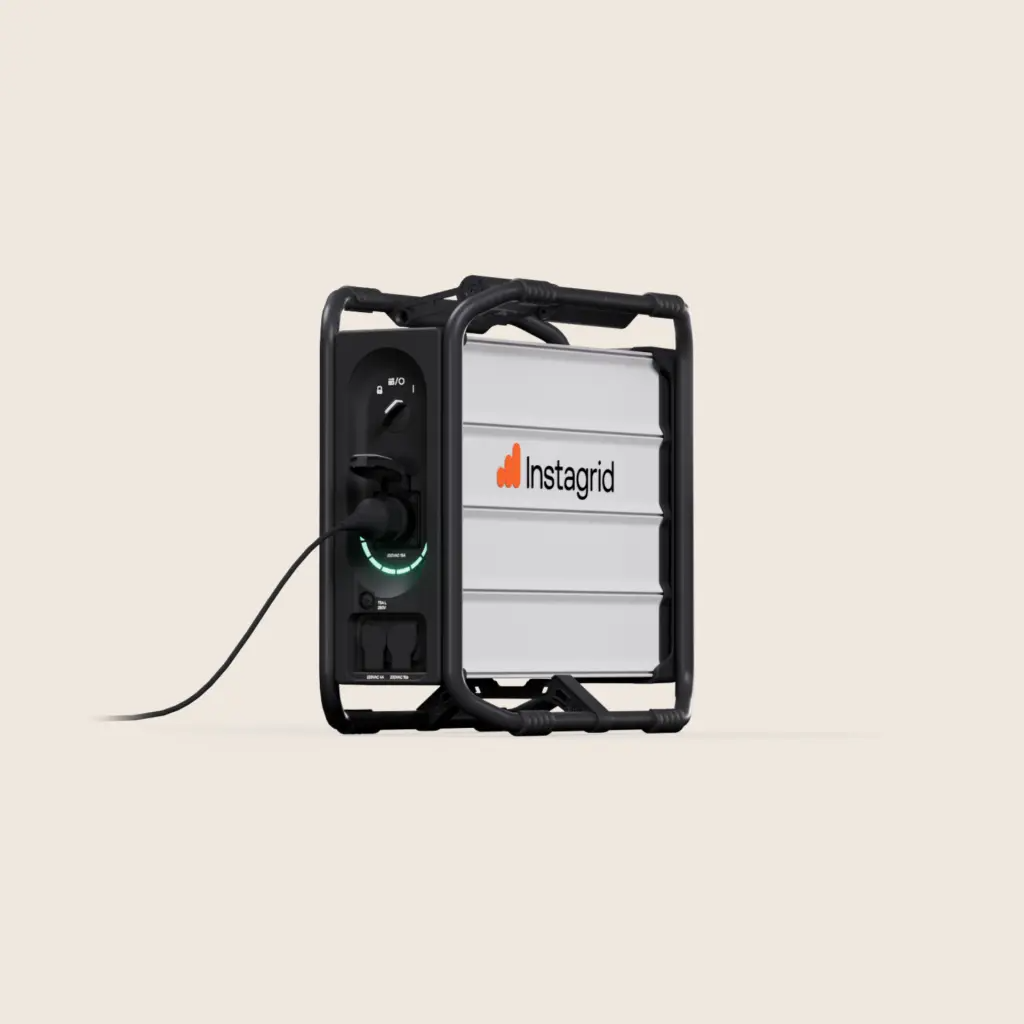

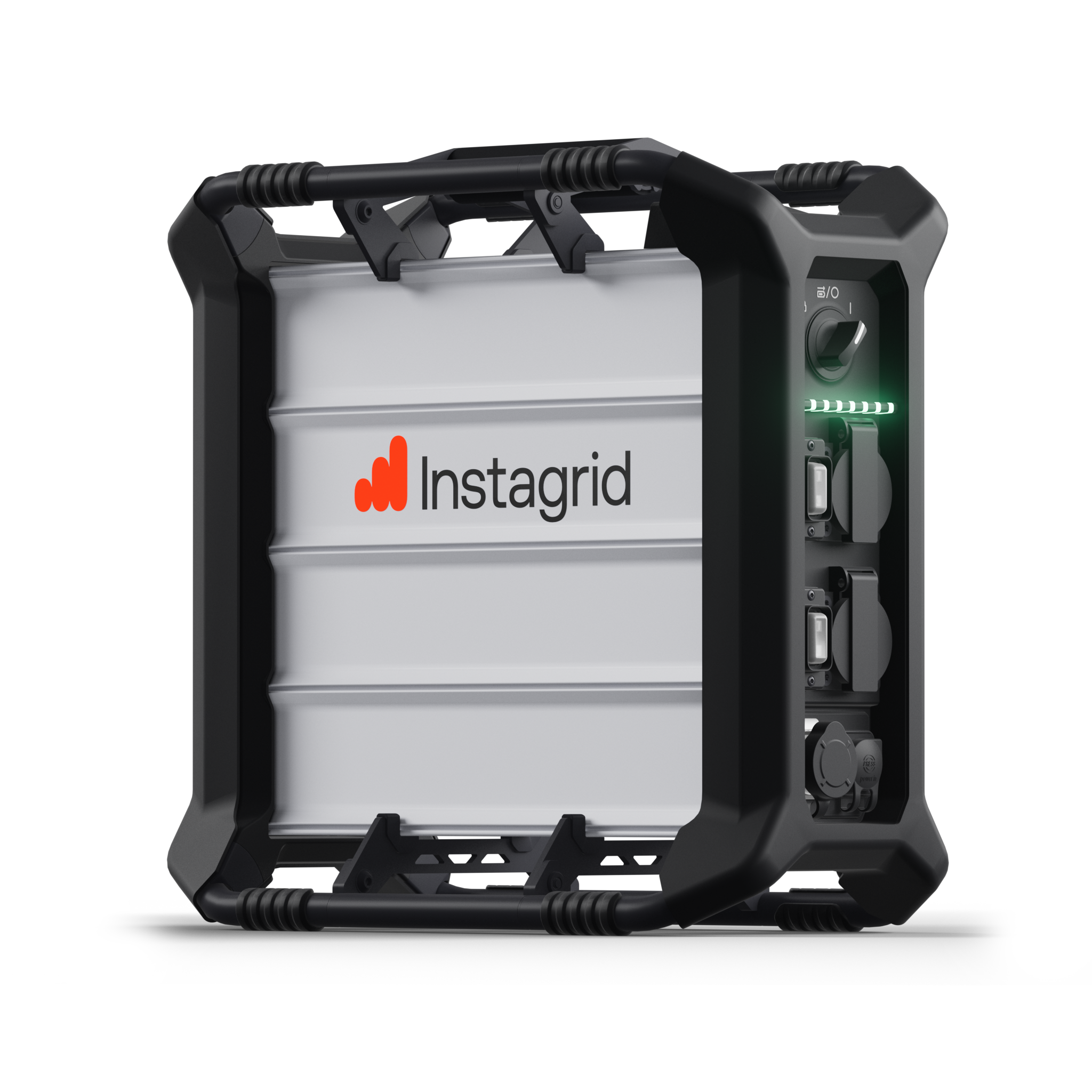

InstaGrid GO

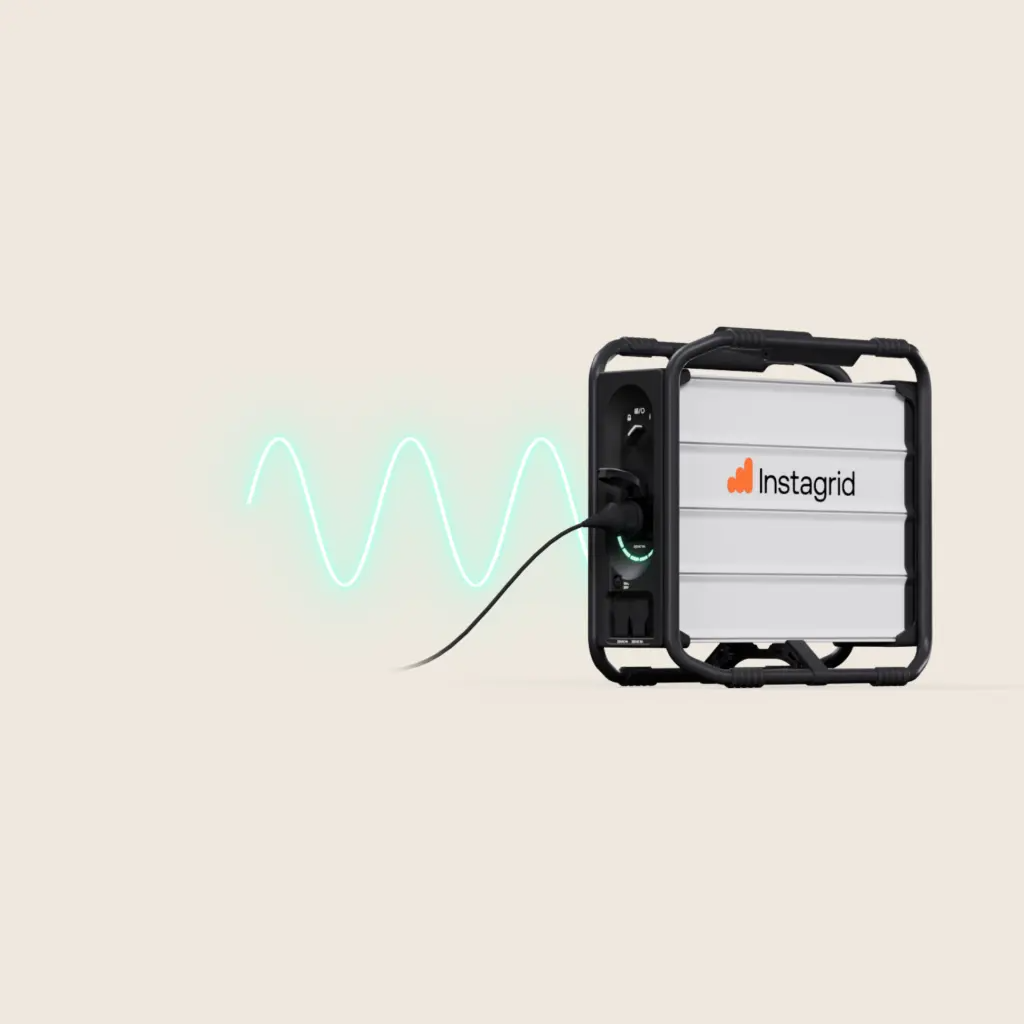

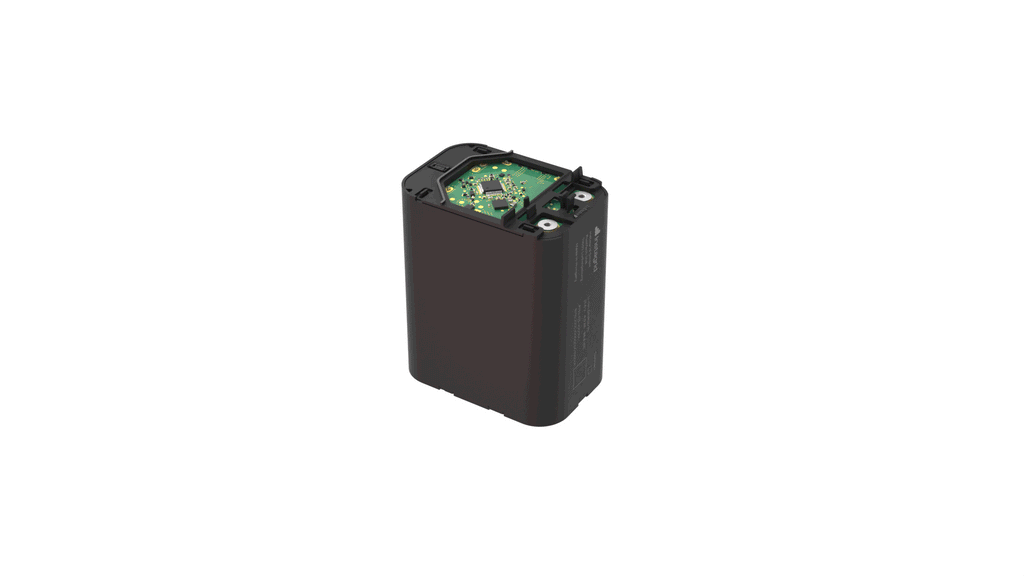

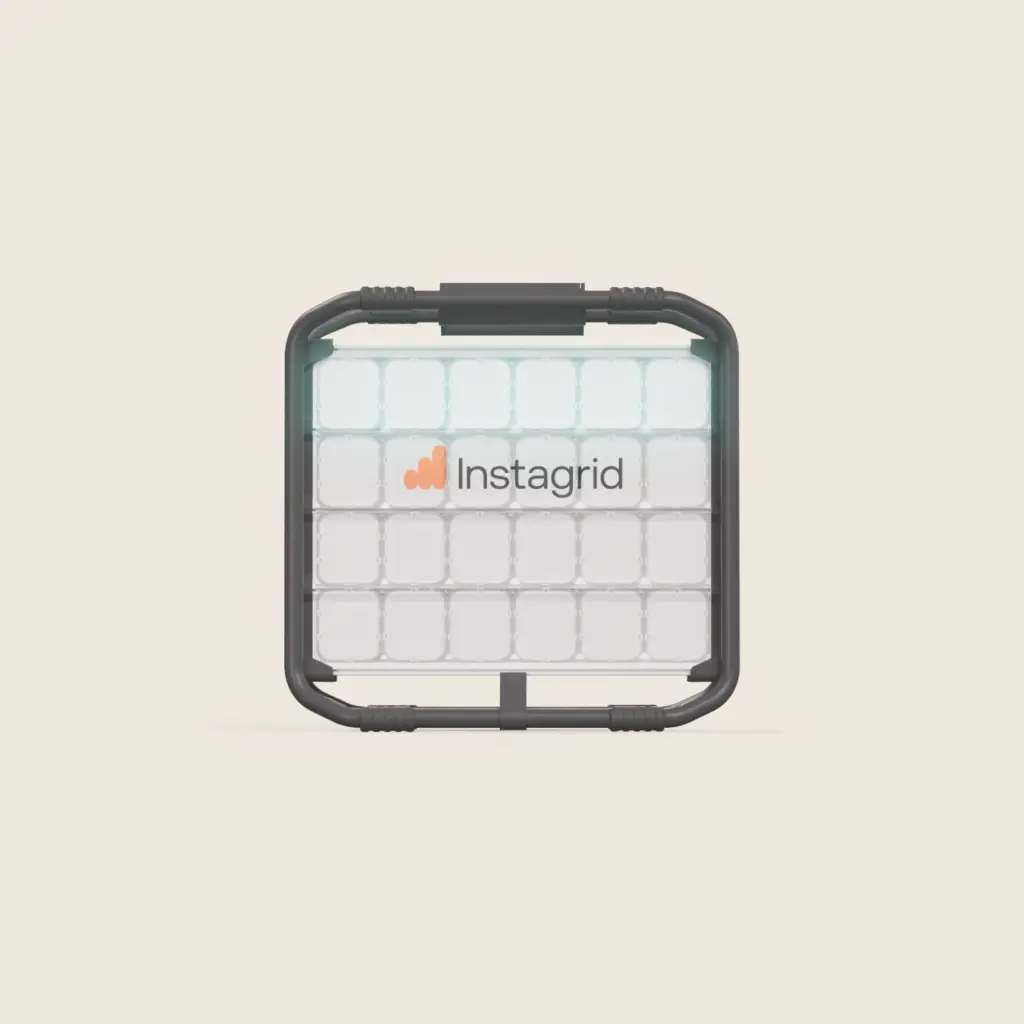

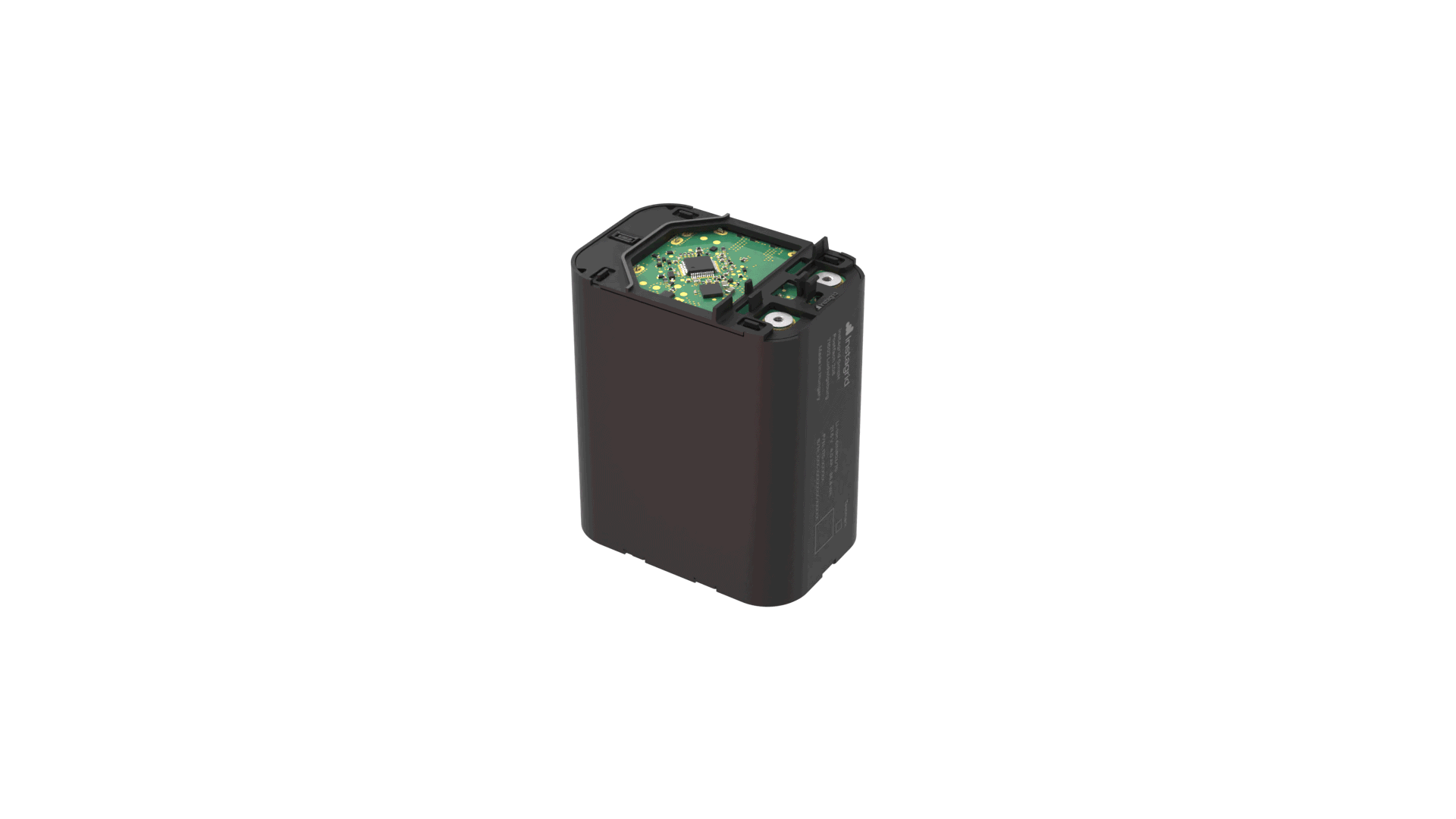

There are many mobile battery systems on the market, and they are more or less built the same way: a bank of batteries connected to a central inverter. Instagrid does things differently. They break down this central inverter into multiple micro-level inverters, each connected to an individual battery module. Using software and electronics, these modules work together to generate a pure AC sine wave.

This innovation is a significant advance in power conversion technology and enables Instagrid products to be drastically smaller, lighter, and more powerful than other battery systems.

• Power your most demanding tools
• 18 kW peak power
• Work anywhere
• Take a 230V wall socket with you – power any device no matter where you are.
• Fast charging
• Full charge in 3 hours. Charge Instagrid ONE in the middle of your workday.
• Robust and weather-proof
• IP54 rating. Work in any conditions, unaffected by dust or water.

• Electrical
• Output voltage: 230 V (AC) / 50 Hz
• Rated power output: 3.6 kW (16 A)
• Rated energy capacity: 2.1 kWh
• Charge duration: < 3 h to 100%
• On (idle): 150 h
• Storage: > 3 years (switch in “off” or “transport” mode)

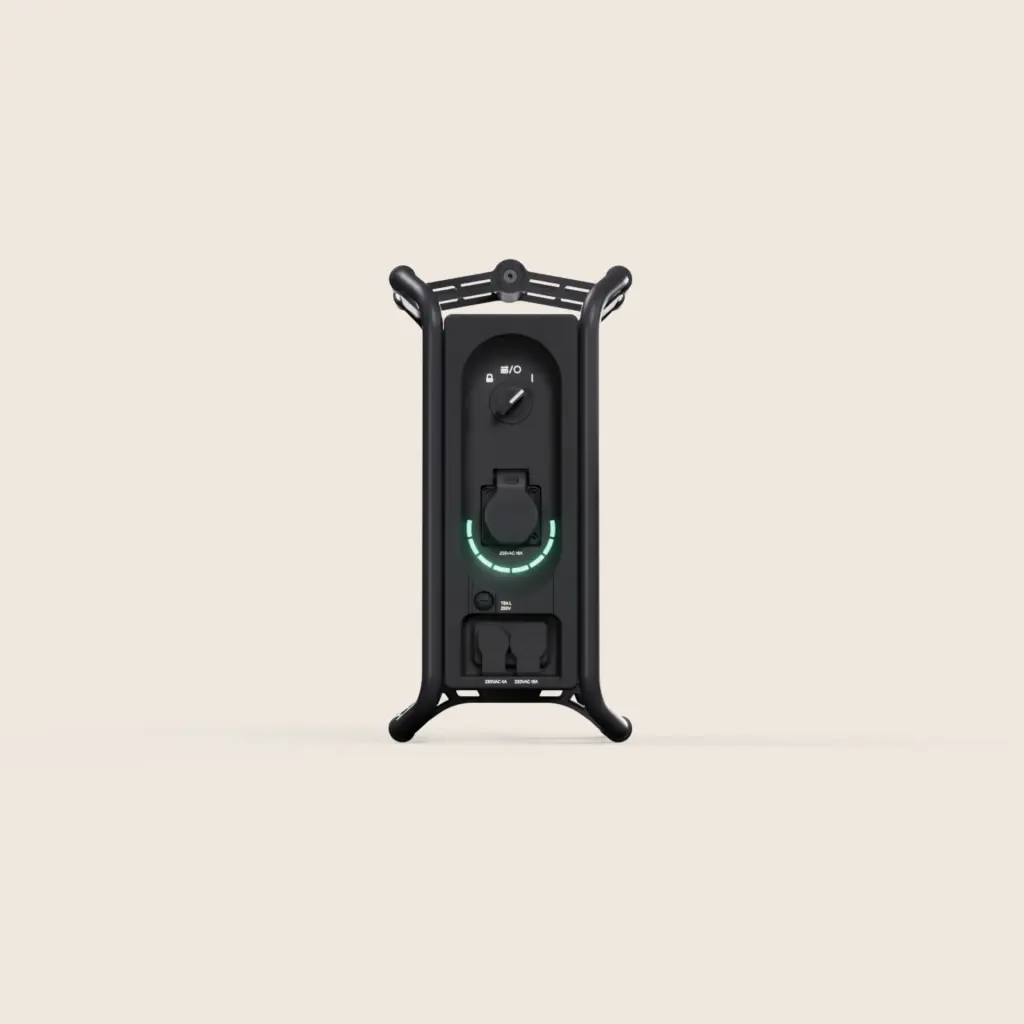

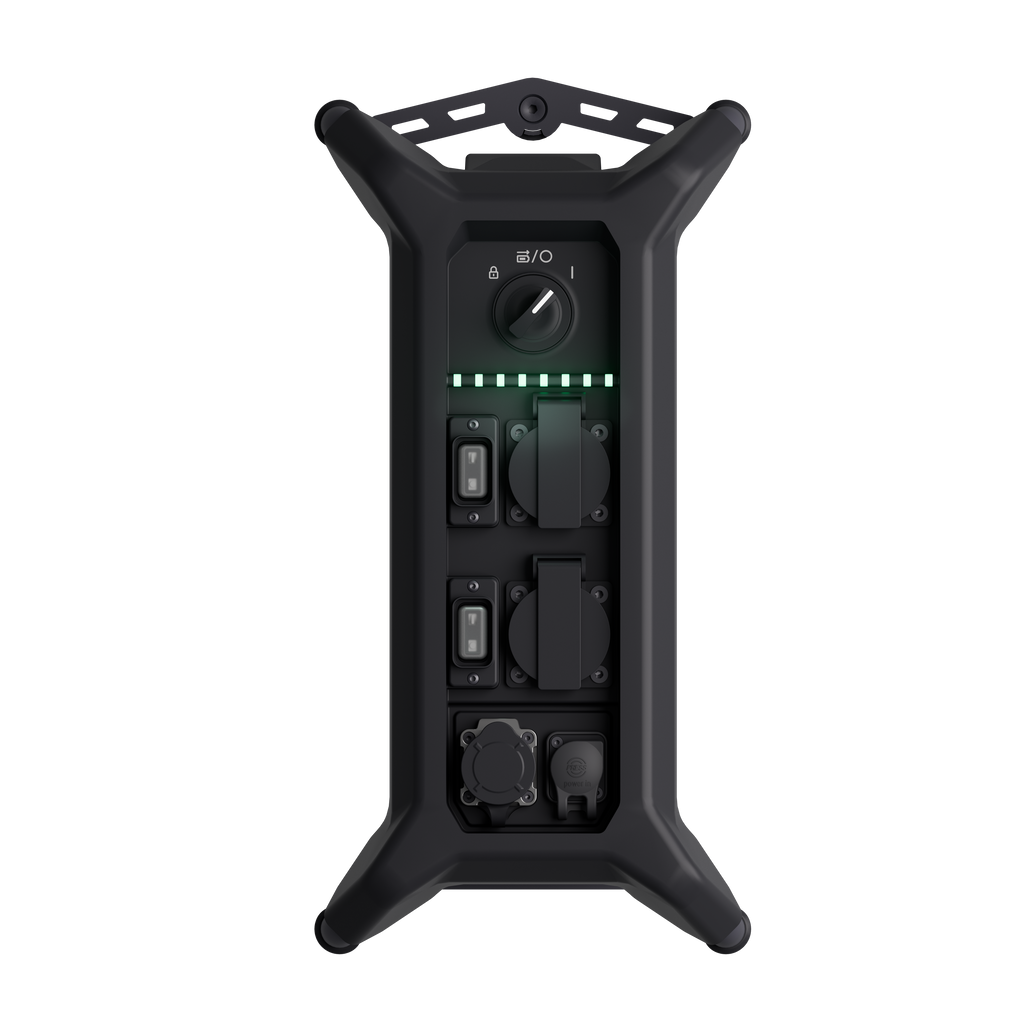

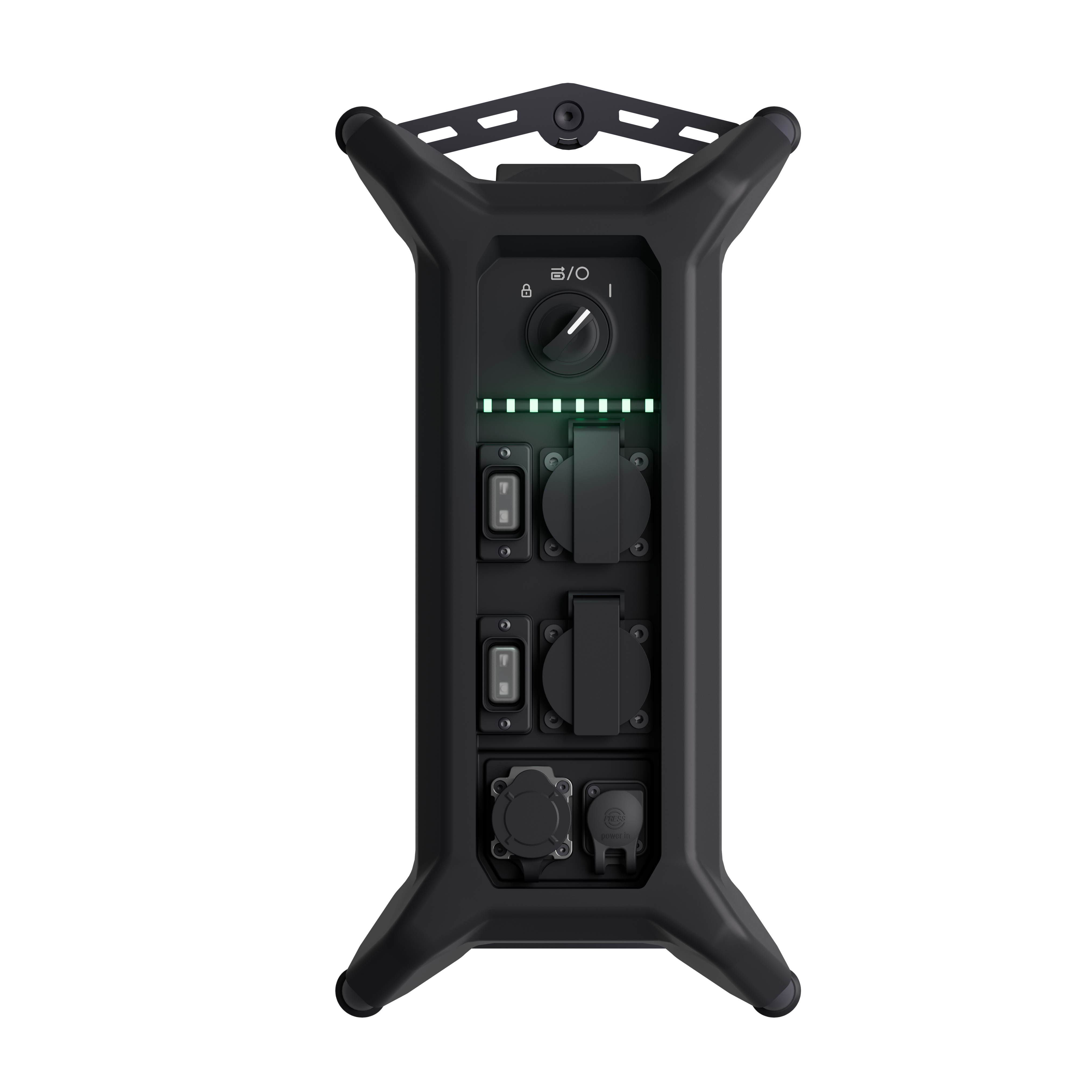

• Output socket: EU CEE 7/3 Socket (16 A)
• Output socket: Neutrik powerCON TRUE1 TOP®
• Input charging socket: Neutrik powerCON TRUE1 TOP®

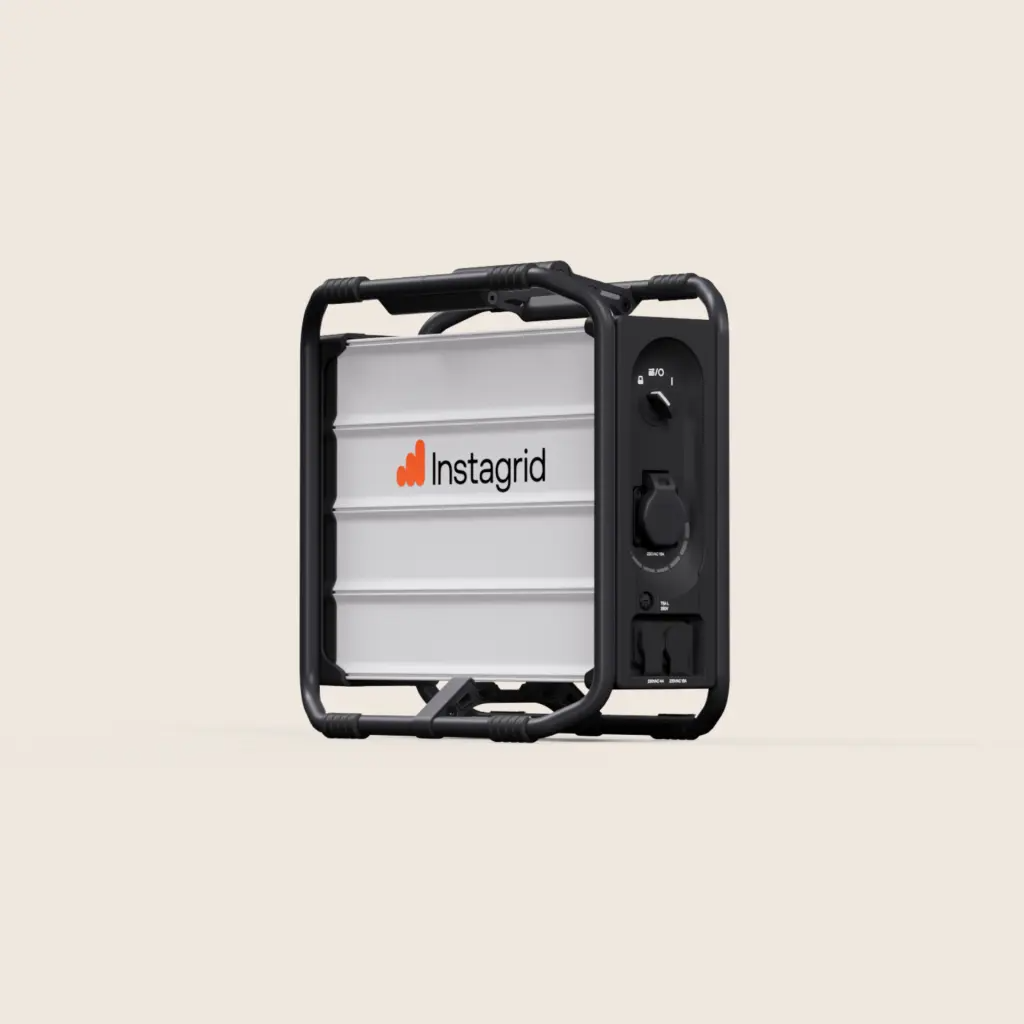

• Physical
• Weight: 20 kg
• Dimensions: 420 x 210 x 420 mm
• Outer case: Recycled aluminium
• Peak Power
• 150% overload (>500 sec): 5.4 kW (24 A)
• 200% overload (>50 sec): 7.2 kW (32 A)
• 250% overload (>10 sec): 9.0 kW (40 A)
• Peak power: 18.0 kW (80 A)
• Environment
• IP class: IP54
• Noise emissions: < 10 dB(A)

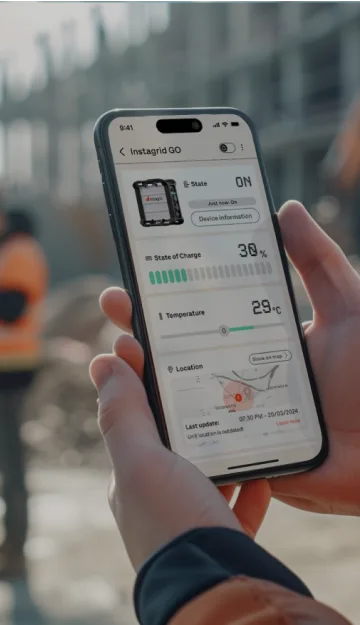

Instagrid App Brochure
